200A Homeline Indoor Main Breaker Load Center, 40-Space/80-Circuit, Qwik-Grip

A 200A Homeline indoor main breaker load center engineered for fast, clean installations with Qwik-Grip and Plug-On Neutral technology. Offers 40 spaces and up to 80 circuits, includes cover and a selection of Homeline breakers for a ready-to-wire setup.

---

Key Features:

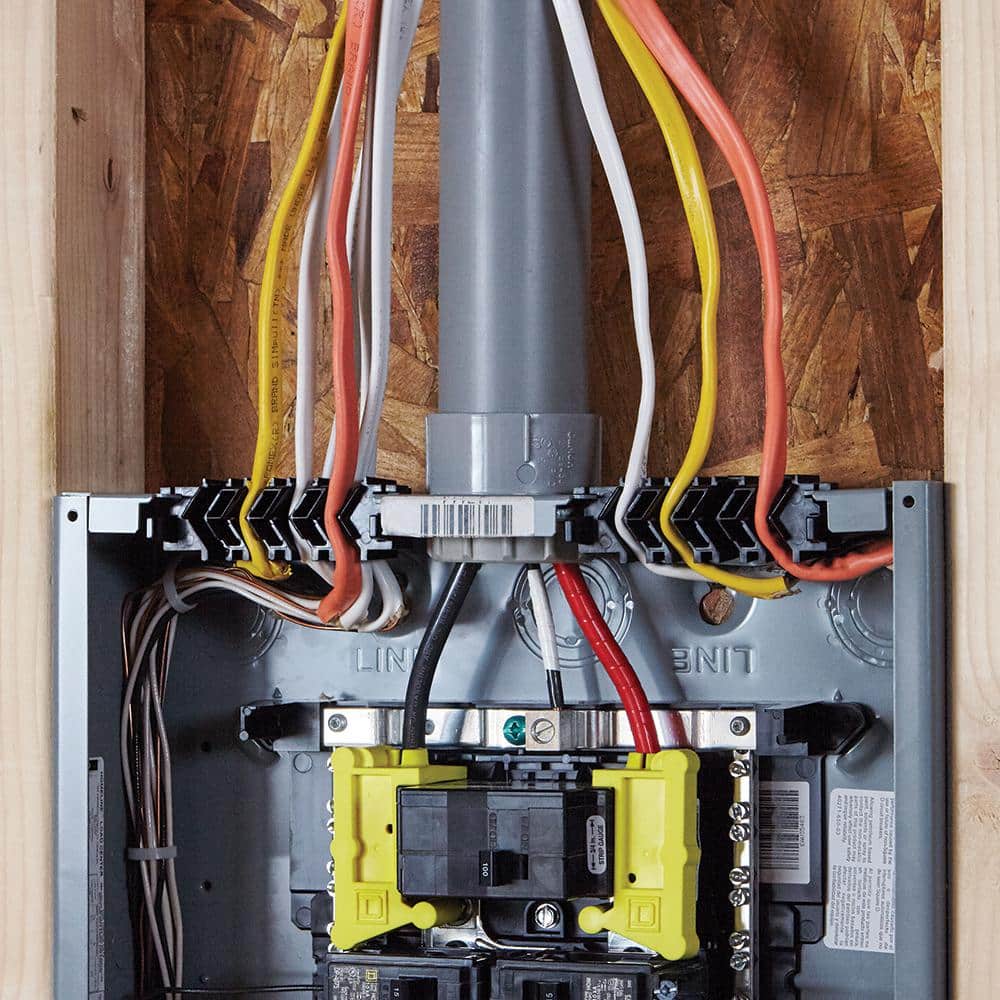

• Qwik-Grip Cable Entry: Speeds installation by eliminating knockouts and connectors for cleaner wiring
• Plug-On Neutral Bar: Supports Homeline plug-on neutral AFCI/GFCI breakers for simplified circuit expansion
• High Capacity Panel: 40 spaces, 80 circuits, 200A, single-phase 120/240V for residential distribution
• Versatile Mounting: Indoor NEMA 1 enclosure for flush or surface mounting

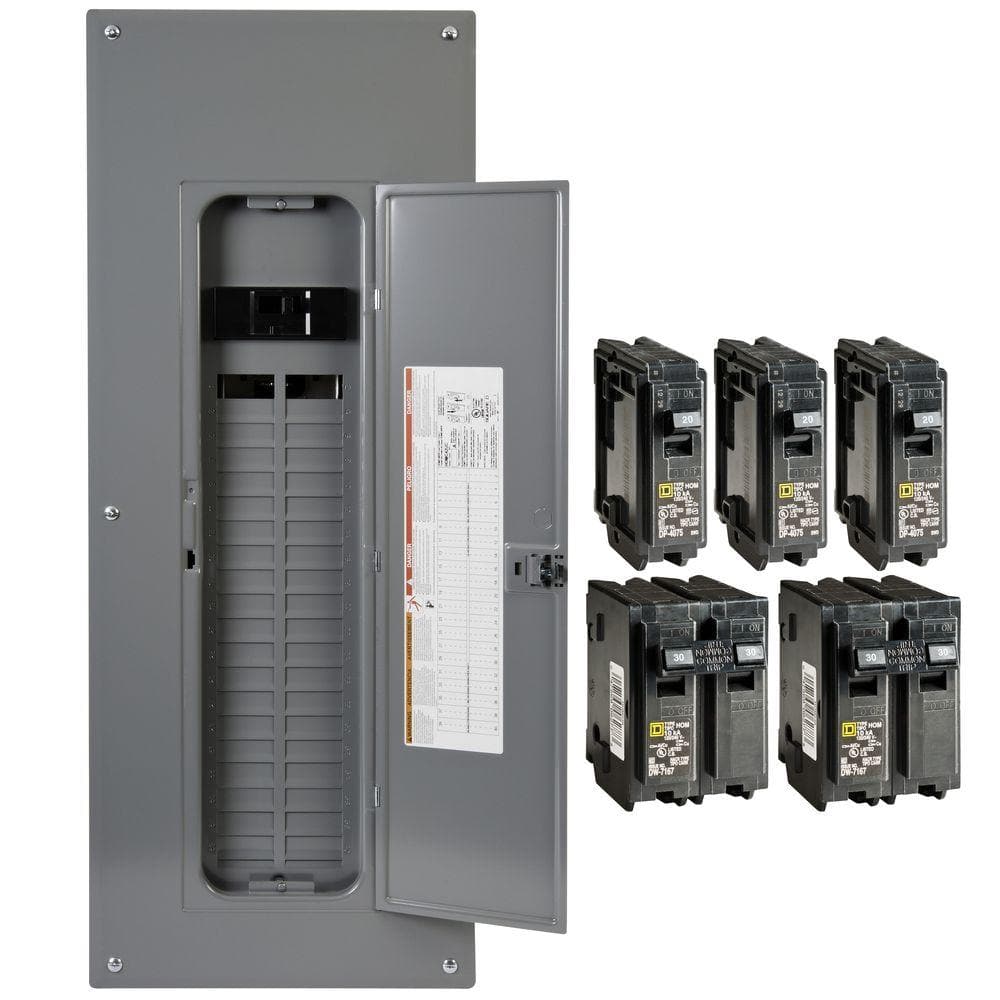

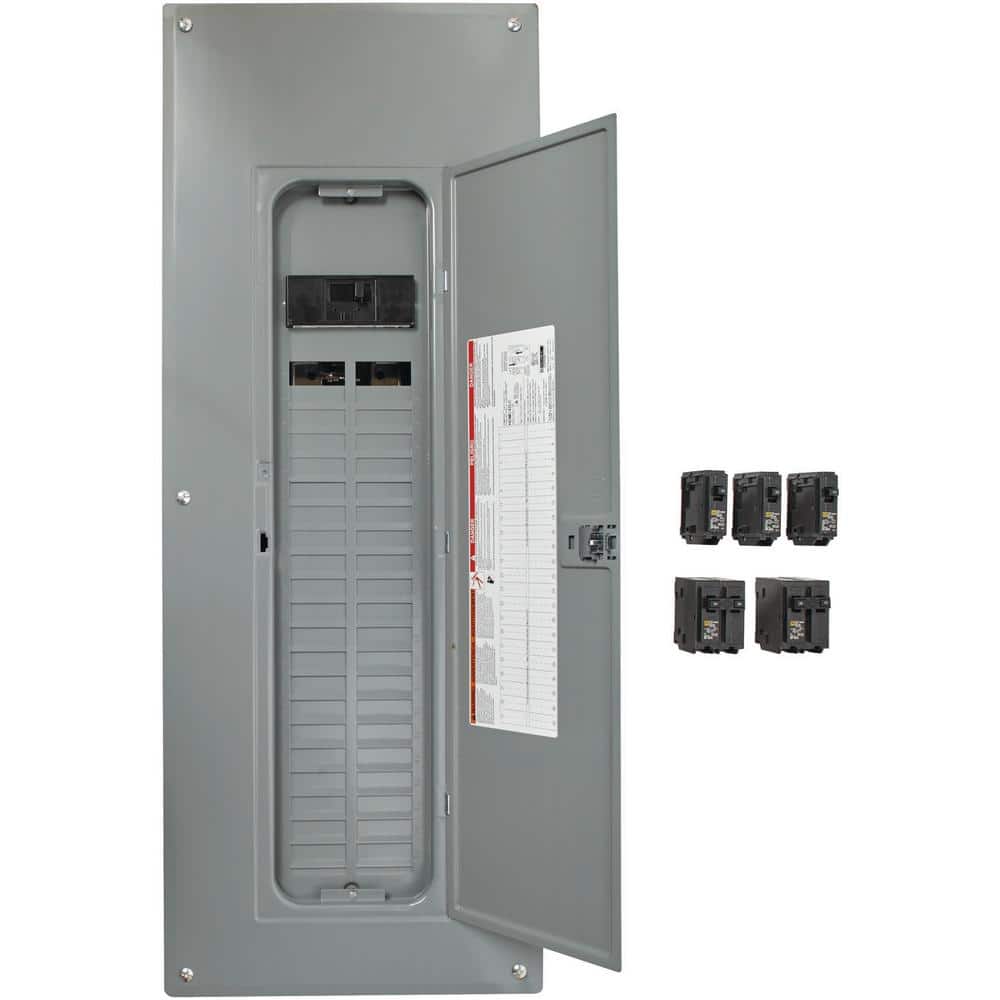

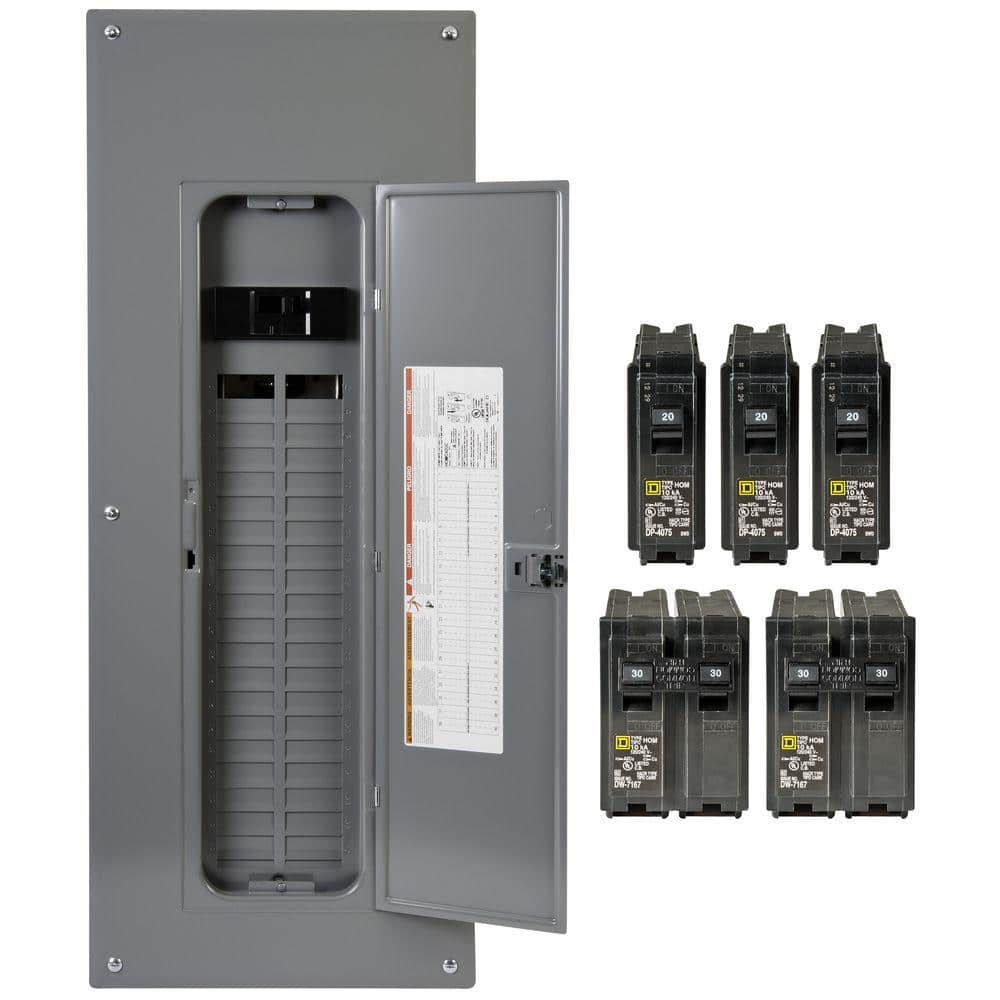

• Included Breakers: Comes with three 20A single-pole HOM120 and two 30A double-pole HOM230 breakers plus cover

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Breaker Box Type	Main Breaker Panel
Electrical Product Type	Load Center and Breaker Kit
Indoor/Outdoor	Indoor
Maximum Amperage	200A
Number of Spaces	40
Number of Circuits	80
Phase Type	Single Phase
Voltage	120/240 VAC
Short Circuit Rating	22,000 AIR
Mounting Type	Flush or Surface
NEMA Rating	NEMA 1
Included	Cover; 3x HOM120 20A 1-pole breakers; 2x HOM230 30A 2-pole breakers

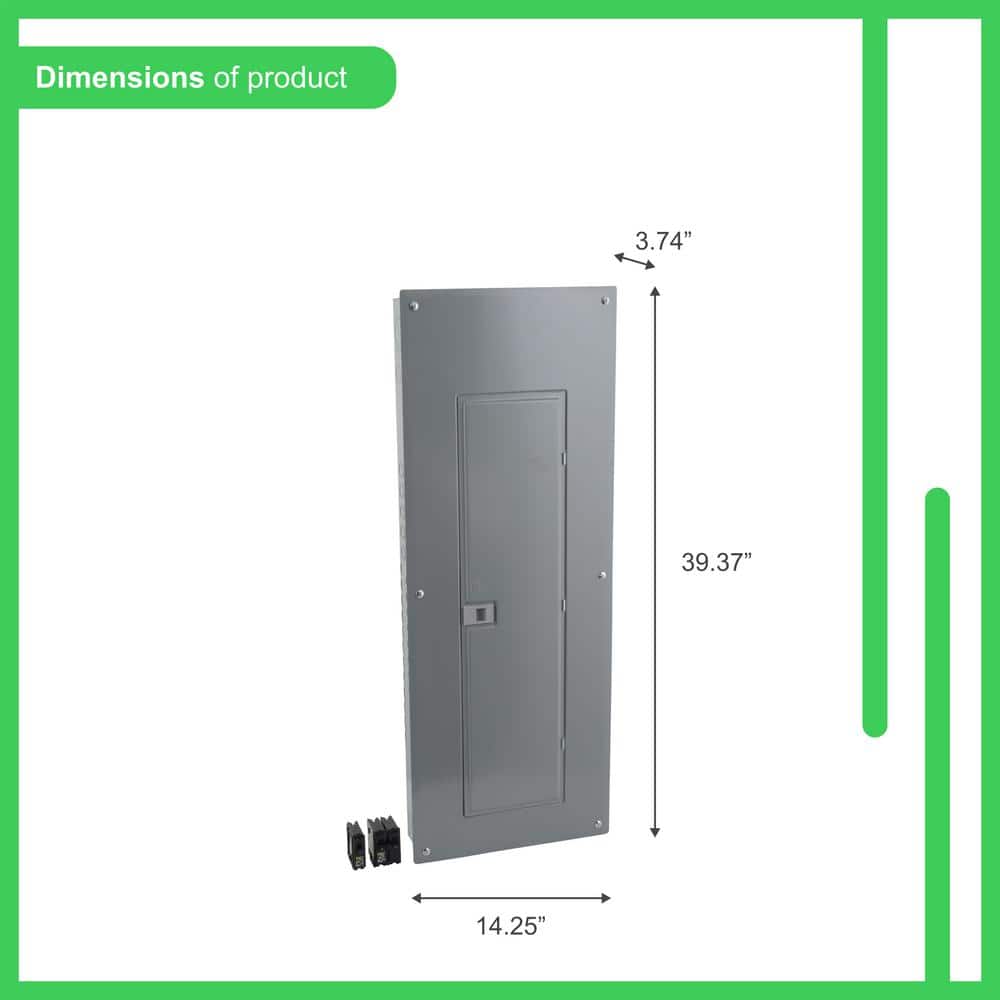

Product Width	14.25 in
Product Height	39.37 in
Product Depth	3.75 in
Product Weight	40.11 lb
Certifications	UL Listed
Manufacturer Warranty	10-year limited warranty for Homeline load centers when used with Homeline breakers
Connection Type	Plug-On Neutral
Feed Options	Overhead or underground (device can be rotated before installation)
Surge Protection Compatibility	Plug-on secondary surge arrestor compatible

---

Frequently Asked Questions (FAQ):

Q: What breakers are included in the value pack?
A: Three HOM120 20A single-pole breakers and two HOM230 30A double-pole breakers, along with the cover.

---

Q: Is this panel compatible with other brands of breakers?
A: It is compatible only with Square D Homeline circuit breakers.

---

Q: Can it be installed flush or surface mounted?
A: Yes, the NEMA 1 indoor enclosure supports both flush and surface mounting.

---

Q: What is the voltage and phase rating?
A: Single-phase, 120/240 VAC with a 22,000 AIR short-circuit rating.

---

Q: Does it support surge protection?
A: Yes, it is compatible with plug-on secondary surge arrestors (sold separately).

---

Streamlined Power, Tailored for Modern Living

This Homeline load center brings a refined, architectural simplicity to utility spaces, transforming a necessity into a sleek, unobtrusive element. The Qwik-Grip entry and plug-on neutral design create a clean, orderly interior that feels intentional and elevated. Style it within a finished mechanical room with crisp labeling and thoughtful cable management for a polished, professional look. It’s an essential backbone for luxurious, reliable living where performance meets restraint.

---

Upgrade to fast, clean, and reliable power distribution—choose this Homeline 200A Qwik-Grip load center today.
