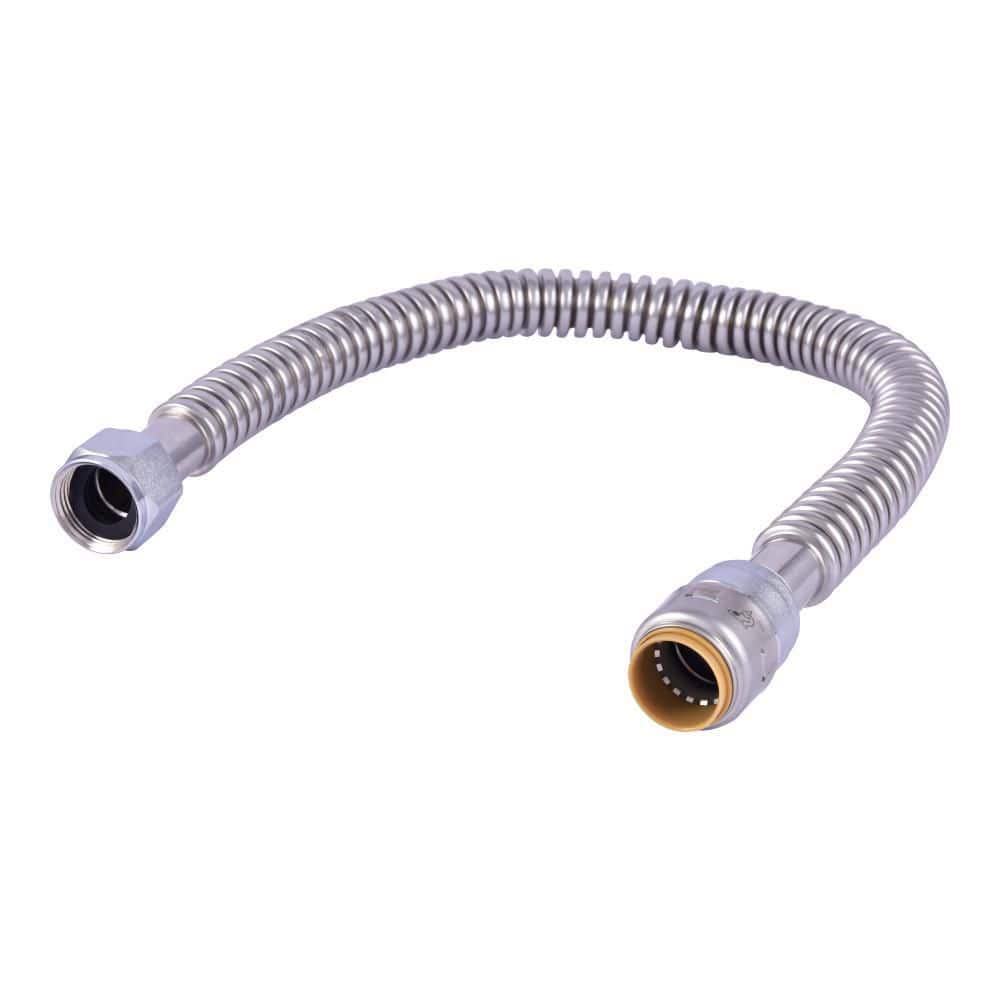

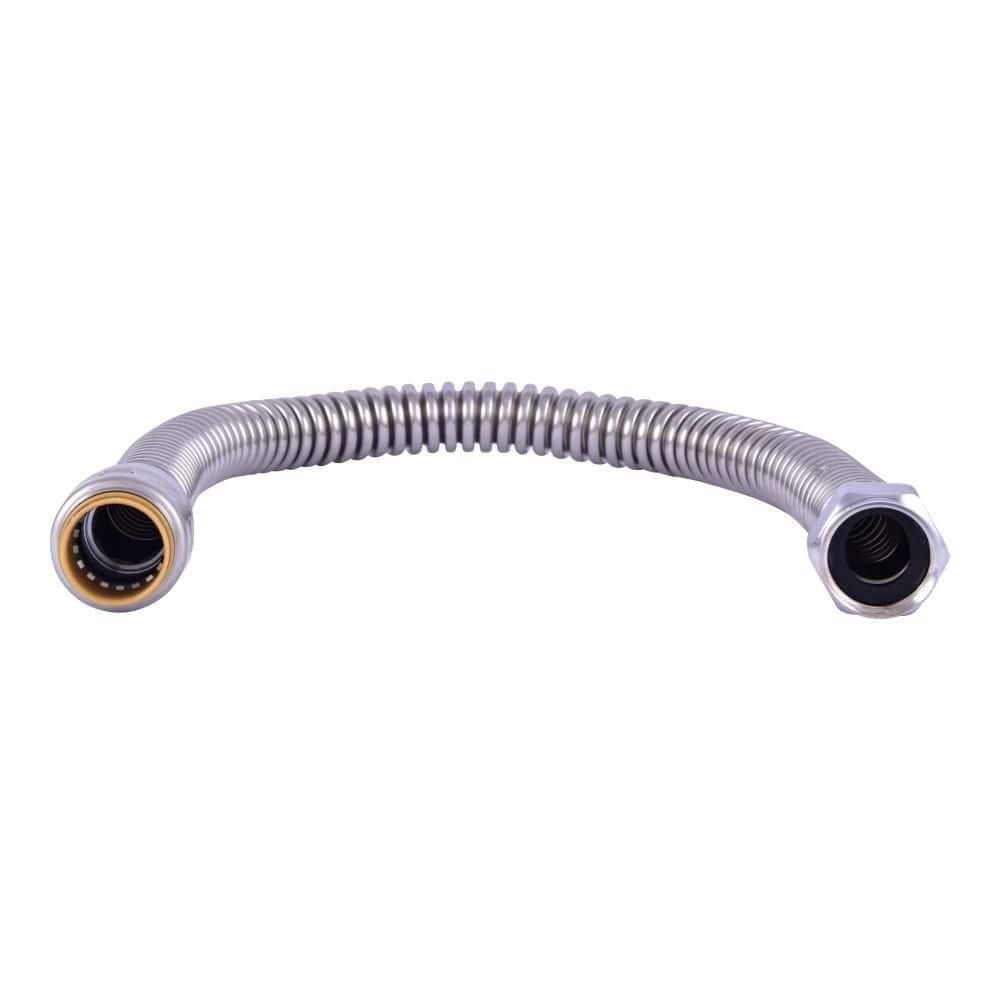

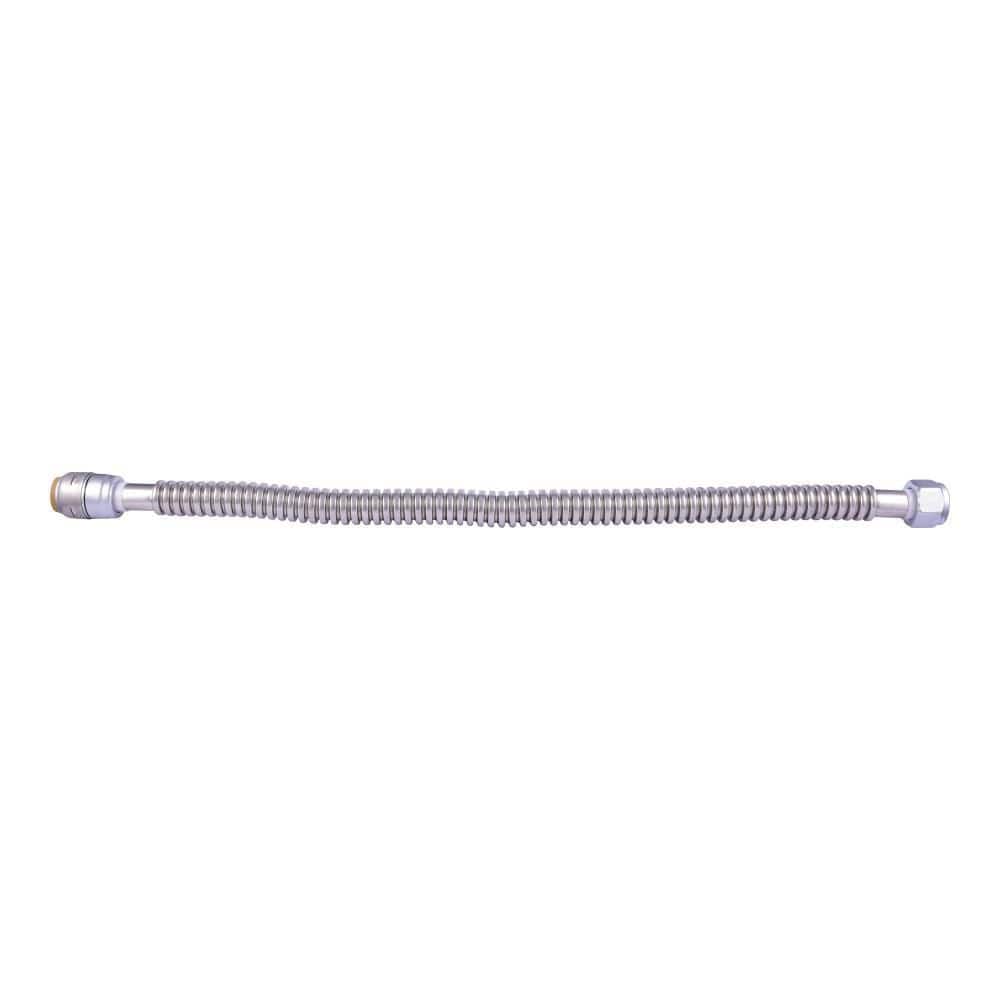

3/4 in. Push-to-Connect x 3/4 in. FIP Water Heater Connector, 24 in.

Flexible corrugated stainless steel connector for quick water heater hookups. Push-to-connect end mates with PEX, copper, CPVC, or PE-RT and the FIP end threads to the heater for a secure, watertight connection without tools.

---

Key Features:

• Tool-Free Installation: Push-to-connect design eliminates soldering, clamps, or glue
• Broad Pipe Compatibility: Works with PEX, copper, CPVC, and PE-RT on hot or cold lines
• Durable Build: Corrugated stainless steel hose with corrosion-resistant brass body and stainless retainer
• High Performance: Rated to 200 psi and 180°F; pressure test immediately—even on wet lines
• Service-Friendly: Fitting can be rotated after install and is removable with a disconnect tool

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Connector Length	24 in
Connection 1	3/4 in. Push-to-Connect
Connection 2	3/4 in. FIP

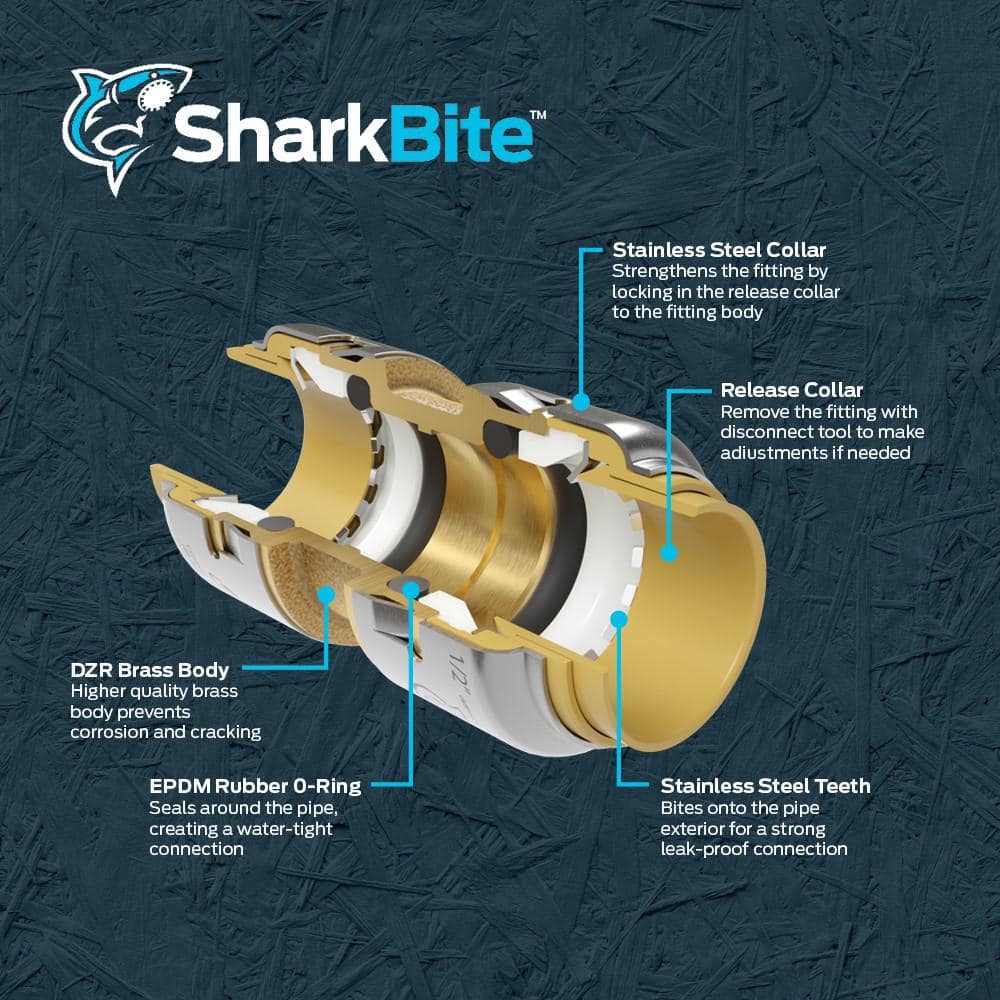

Material	Corrugated Stainless Steel hose; DZR brass body; EPDM O-ring; stainless steel teeth/retainer
Application	Potable Water
For Use With	Electric Tank, Electric Tankless, Gas Tank, Gas Tankless
Finish Family	Silver Metallic
Pack Size	1
Product Weight	0.64 lb
Product Length	24 in
Product Depth	24.02 in
Product Width	1.29 in
Product Height	1.29 in
Temperature Rating	180°F
Pressure Rating	200 psi
Certifications	IAPMO listed; code approved
Warranty	25-year warranty when used with PEX, copper, CPVC and PE-RT pipe; must be installed per instructions
Features	Installable on wet or dry lines; rotatable after installation; removable with disconnect tool; no PEX tube liner required; behind-the-wall and underground use approved (wrap when burying)

---

Frequently Asked Questions (FAQ):

Q: What pipe types can this connector attach to?
A: It connects to PEX, copper, CPVC, PE-RT, and HDPE on the push-to-connect side and 3/4 in. FIP on the threaded side.

---

Q: Is any special tool required?
A: No. The push-to-connect end installs without soldering, clamps, or glue; use a disconnect tool if removal is needed.

---

Q: Can it be used behind walls or underground?
A: Yes—approved for behind-the-wall and underground applications; wrap when burying underground.

---

Q: What are the operating ratings?
A: Rated to 180°F and 200 psi.

---

Q: Is it suitable for gas and electric water heaters?
A: Yes, it’s approved for electric and gas water heaters with flue vents.

---

Streamlined Utility With Sleek Stainless Detail

This corrugated stainless connector introduces a clean, architectural line to utility spaces, turning a functional necessity into a polished accent. The gleam of stainless and the compact push-to-connect fitting keep the install tidy and refined. Pair two for a symmetrical, professional look above the tank, keeping wall lines uncluttered. It’s a small upgrade that delivers luxury-level neatness to an everyday essential.

---

Upgrade your water heater hookup in minutes—add this SharkBite stainless connector to your cart today.
