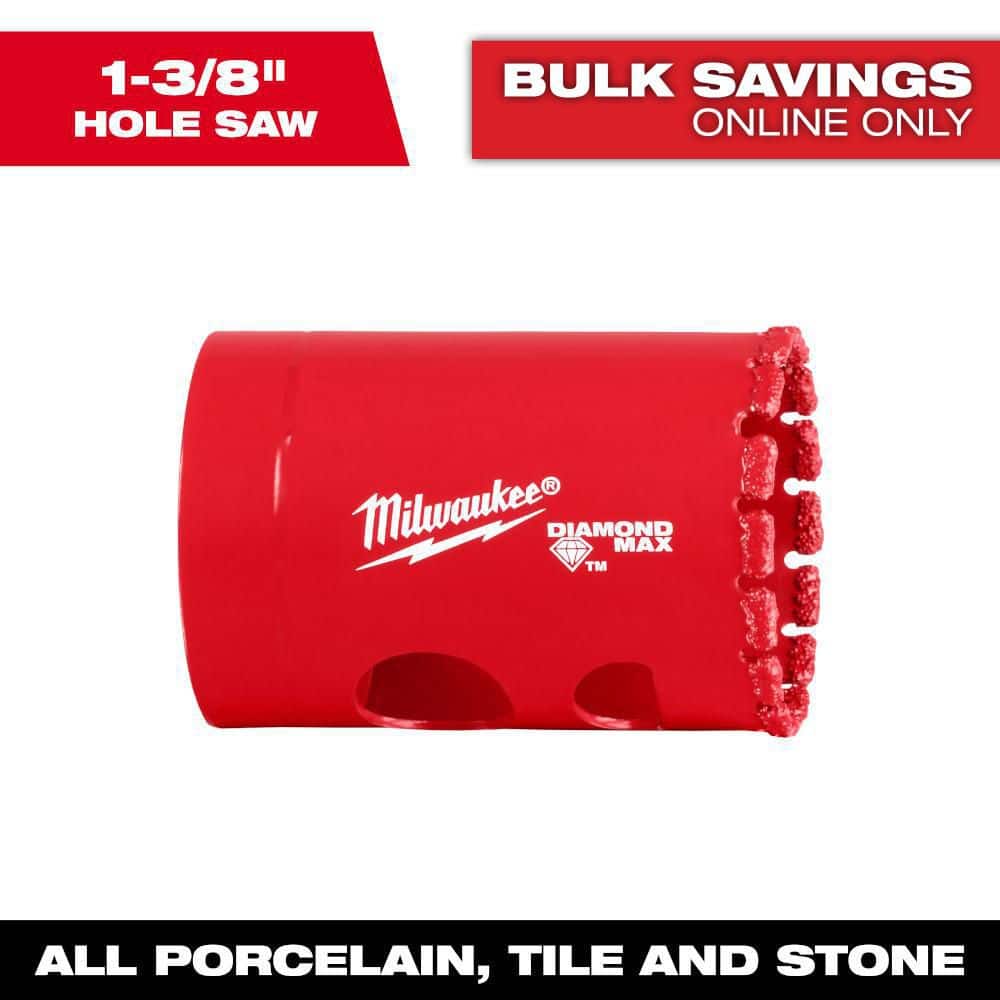

1-3/8 in. Diamond MAX Diamond Hole Saw

This Milwaukee Diamond MAX hole saw is engineered for fast, clean holes in tile, stone, and glass. A continuous brazed diamond edge and large slug-ejection slot deliver durability, heat resistance, and easy plug removal for professional results.

---

Key Features:

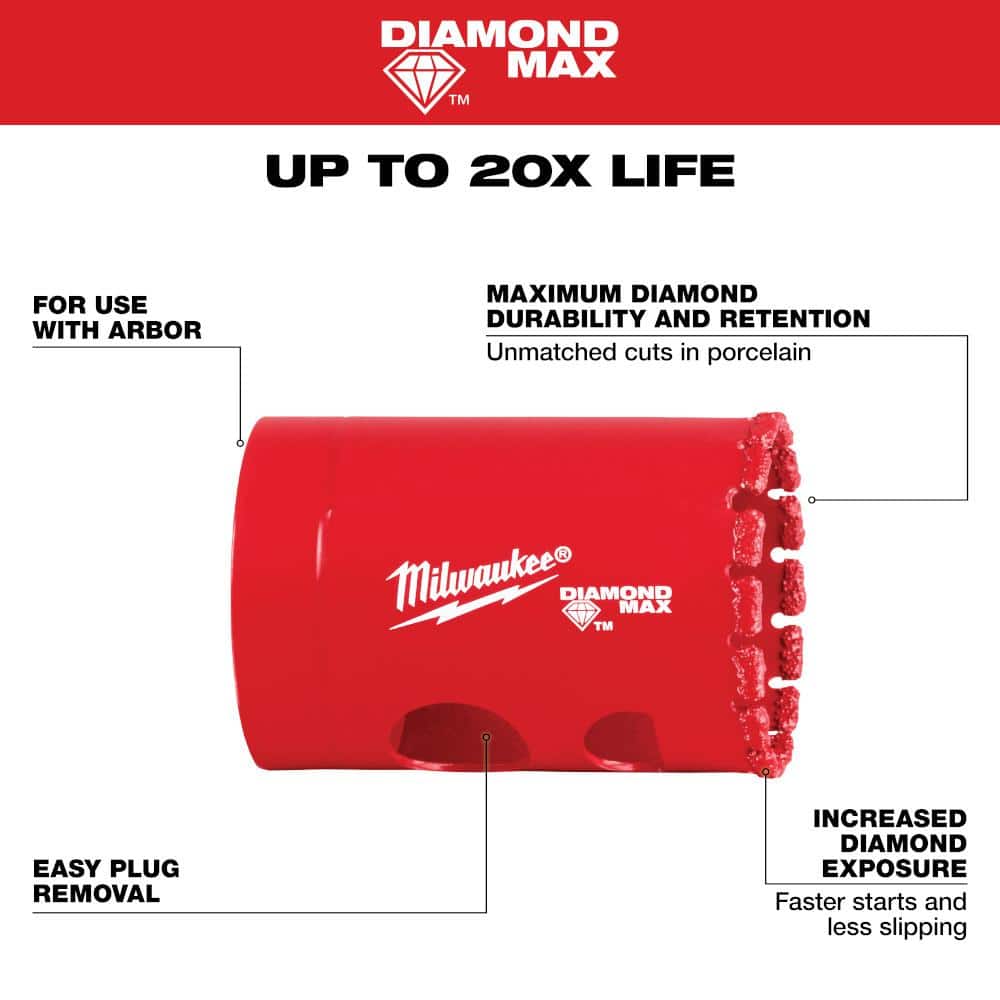

• Diamond MAX Edge: Continuous brazed diamond rim for long life and clean cuts in tile, stone, and glass
• Heat/Fracture Resistance: Higher-grade diamonds withstand tough, abrasive materials
• Easy Plug Removal: Large ejection slot speeds workflow
• Quick-Change Shank: 1/4 in. hex for fast bit changes; use with standard arbors
• Sized for Precision: 1-3/8 in. diameter with 1.8 in. drilling depth

---

Specifications Table:

Specification	Details
Hole Saw Diameter	1-3/8 in
Bit Diameter	1-3/8 in
Bit Length	1.625 in (approx. 1.62 in)
Drilling Depth	1.8 in
Item Weight	.27 lb
Min Chuck Size Required	1/2 in
Individual/Set	Individual
Drill Bit Type(s) Included	Hole Saw
Bit Material	Other (Diamond brazed)
Arbor Included	No
Pilot Bit Included	No
Drill Bit Type	Hole Saw
Tools Product Type	Power Tool Accessory
Arbor Size	3/8 in
Teeth Per Inch	4
Shank Style	Hex
Material Cut	Multi-Purpose (tile, stone, glass)
Shank Diameter	7/16 in

---

Frequently Asked Questions (FAQ):

Q: Does this include an arbor or pilot bit?
A: No. The hole saw is sold individually; arbor and pilot bit are not included.

---

Q: What materials can I cut?

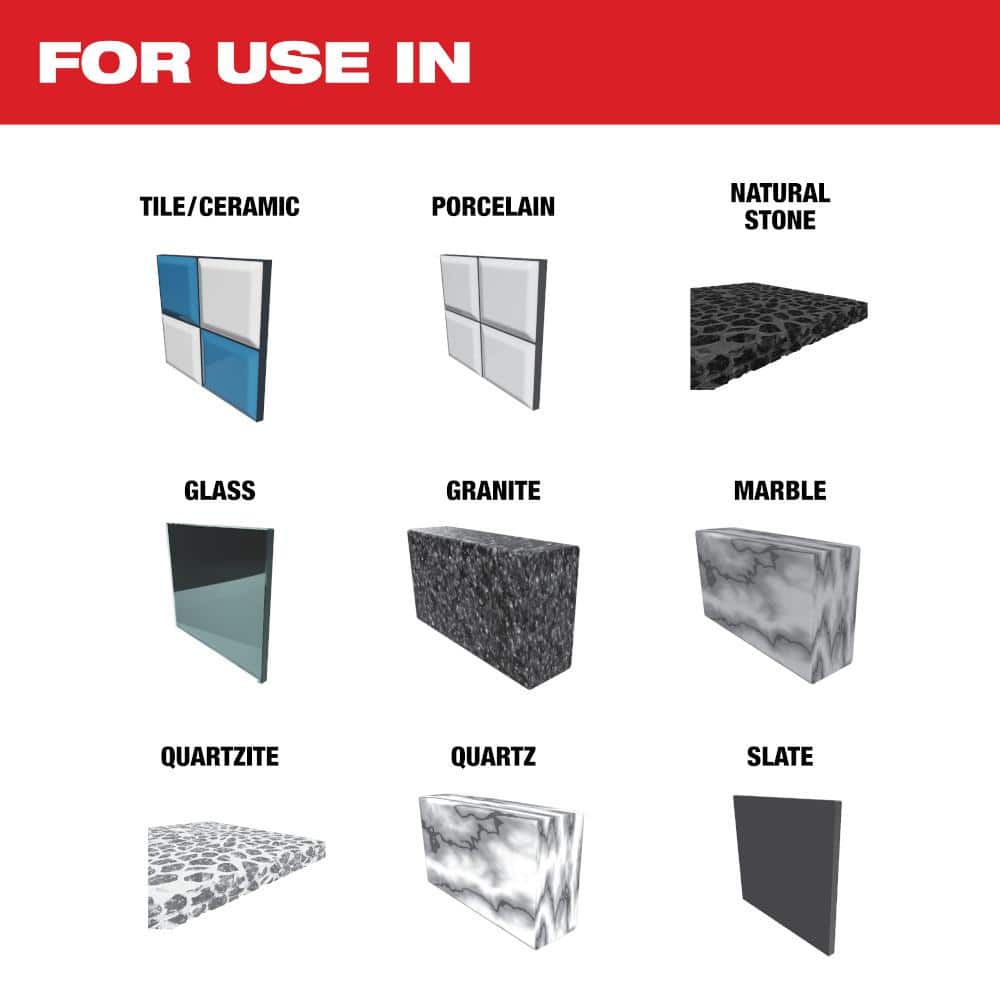

A: Designed for porcelain, ceramic tile, glass, natural stone, granite, marble, quartz, and slate.

---

Q: What drill is required?
A: Use with a drill/driver; minimum chuck size 1/2 in. per specs.

---

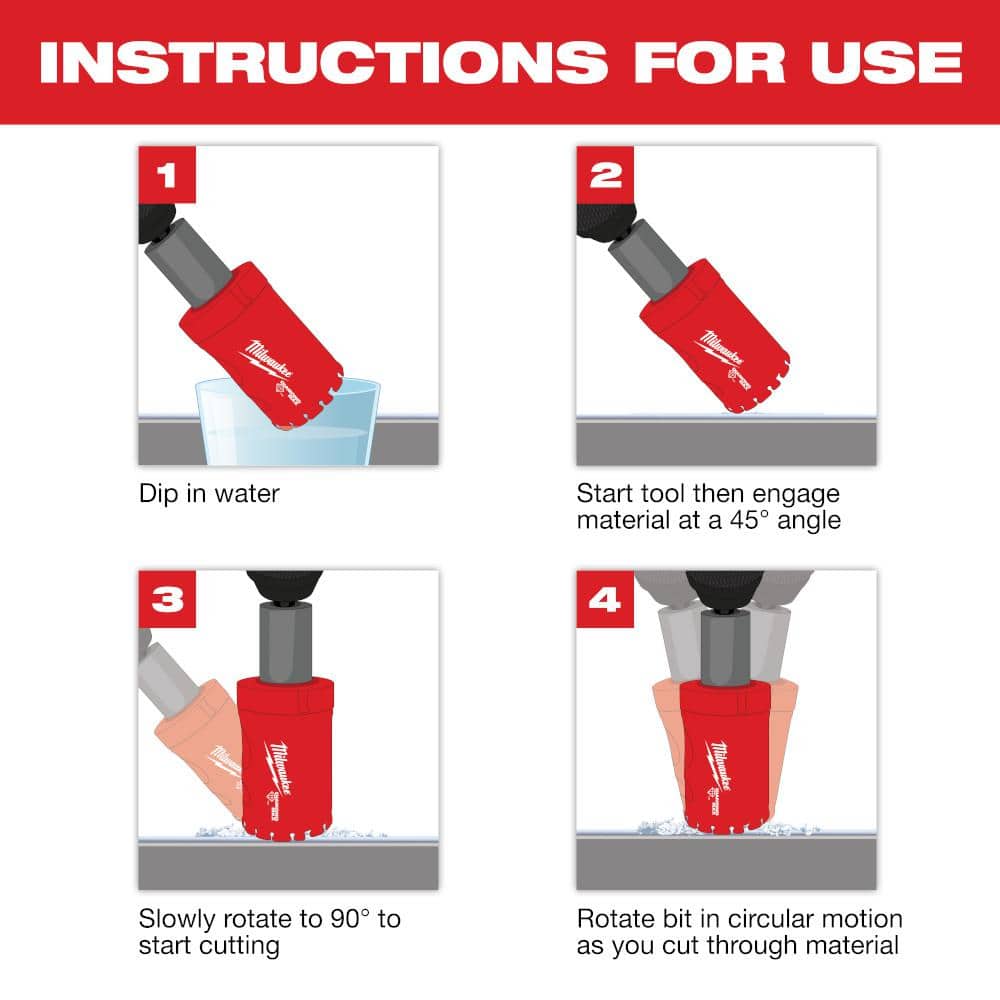

Q: How do I improve tool life when cutting?
A: Dip the bit in water and cut at a slight angle to start; rotate to 90° and use a circular motion while maintaining cooling.

---

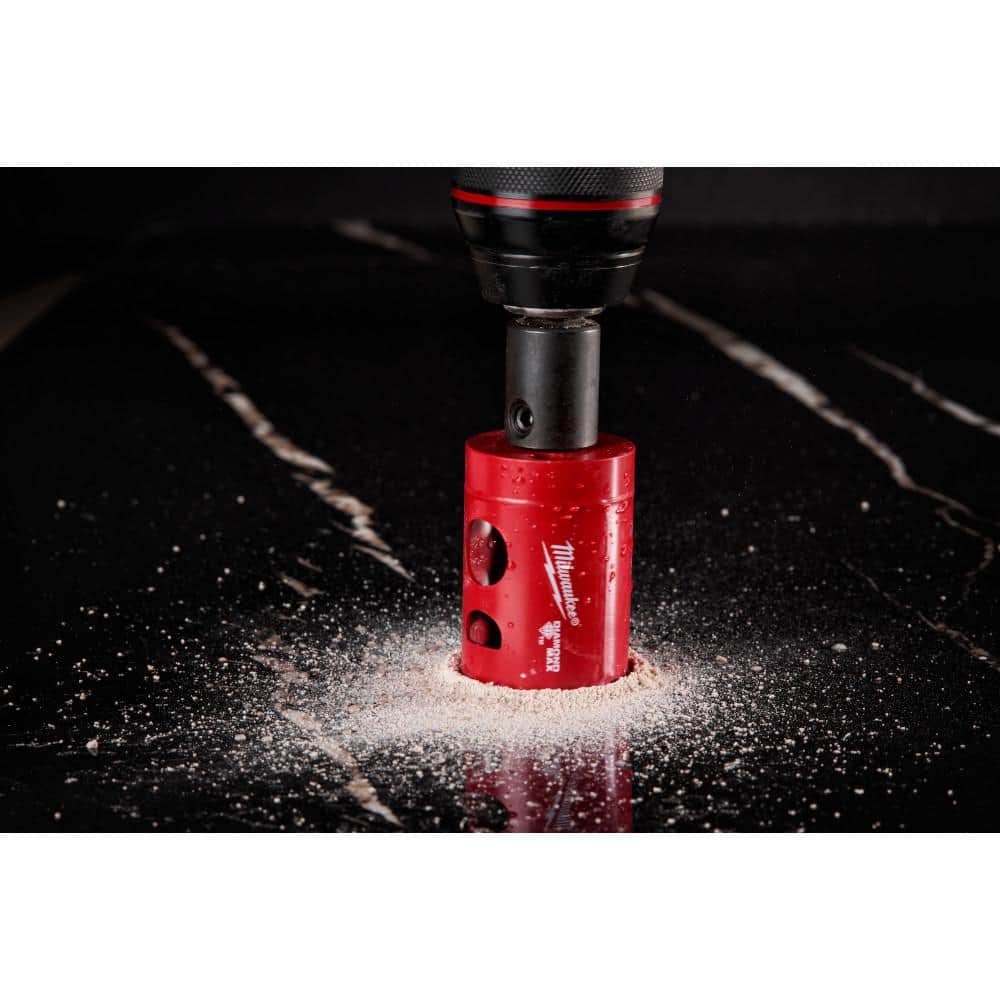

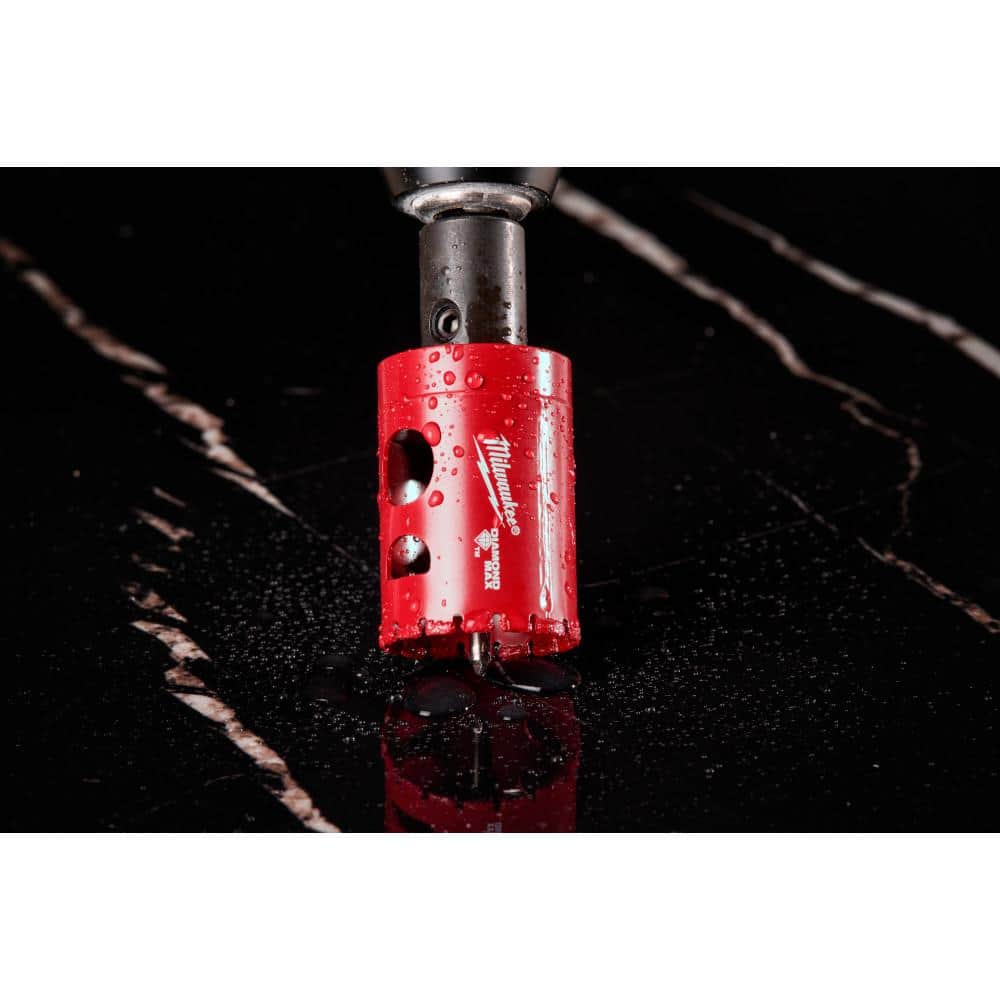

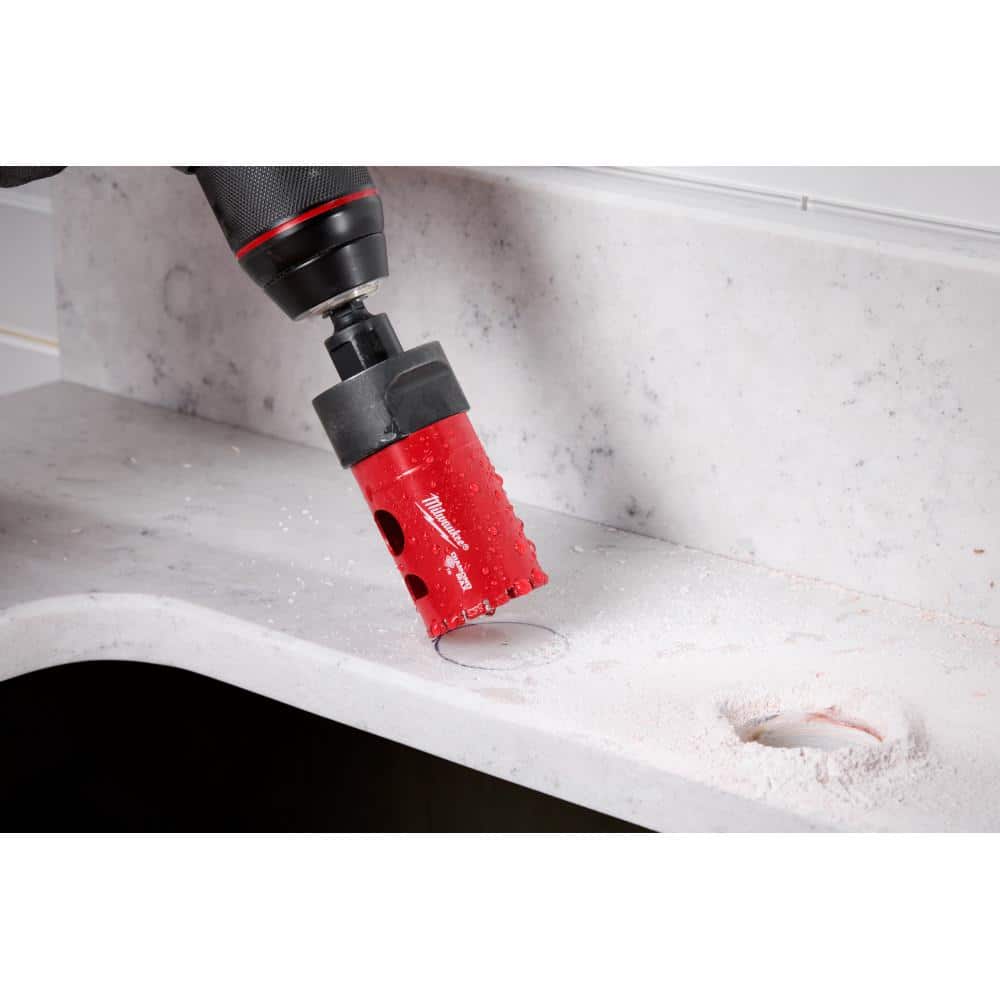

Cut Porcelain and Stone with Polished Precision

When finishes matter, this Diamond MAX hole saw glides through porcelain and stone, preserving crisp edges for faucets and fixtures. The brazed diamond rim is the hero—steadfast, efficient, and impeccably clean. Pair it with a sleek matte-black faucet set and let your countertop punctures be as refined as the design itself. It’s the quiet luxury essential behind every flawless installation.

---

Equip your drill with Diamond MAX and make fast, clean openings in tile and stone—add to cart now.
