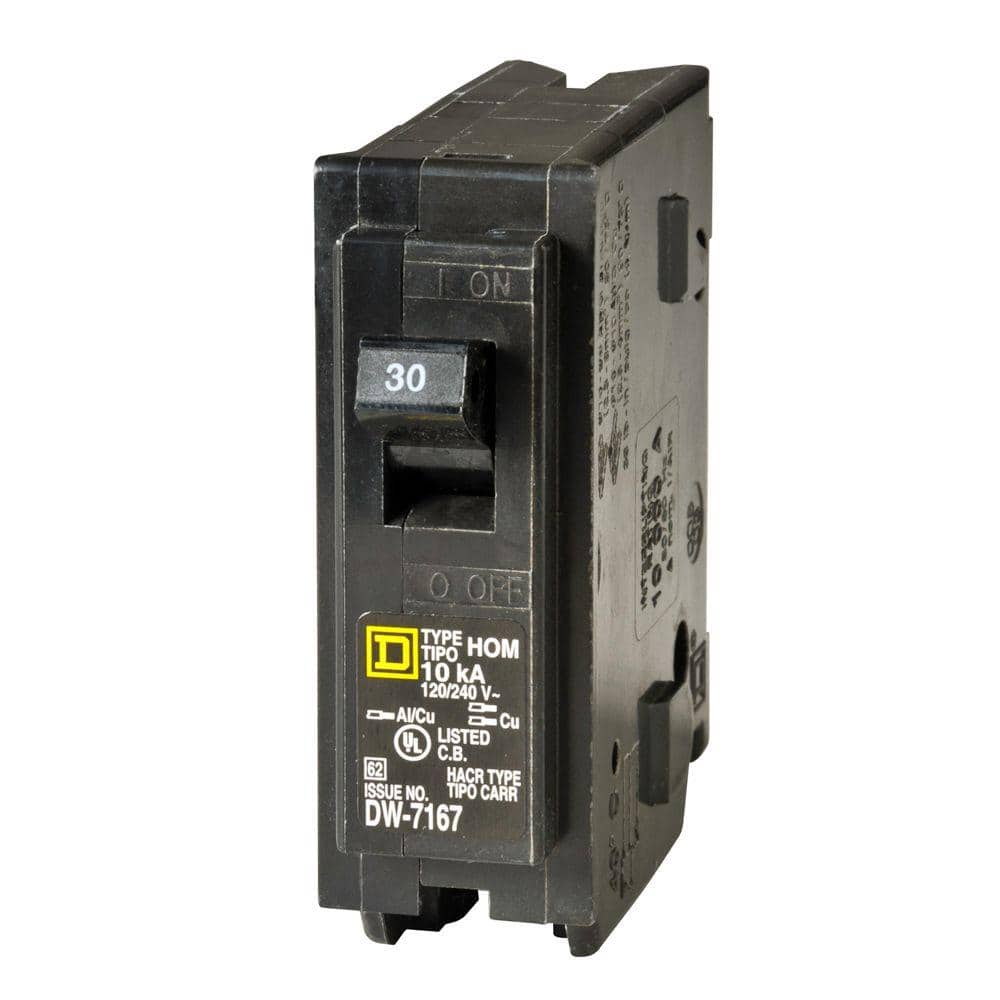

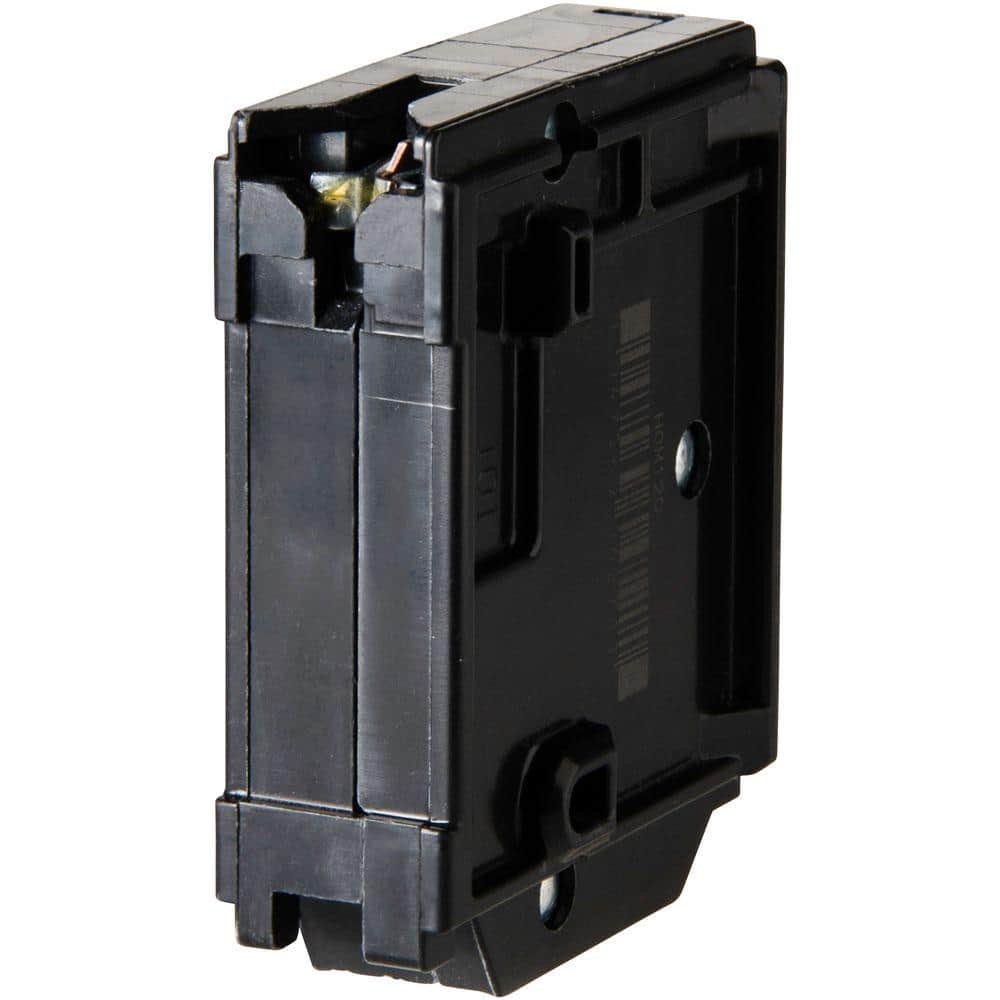

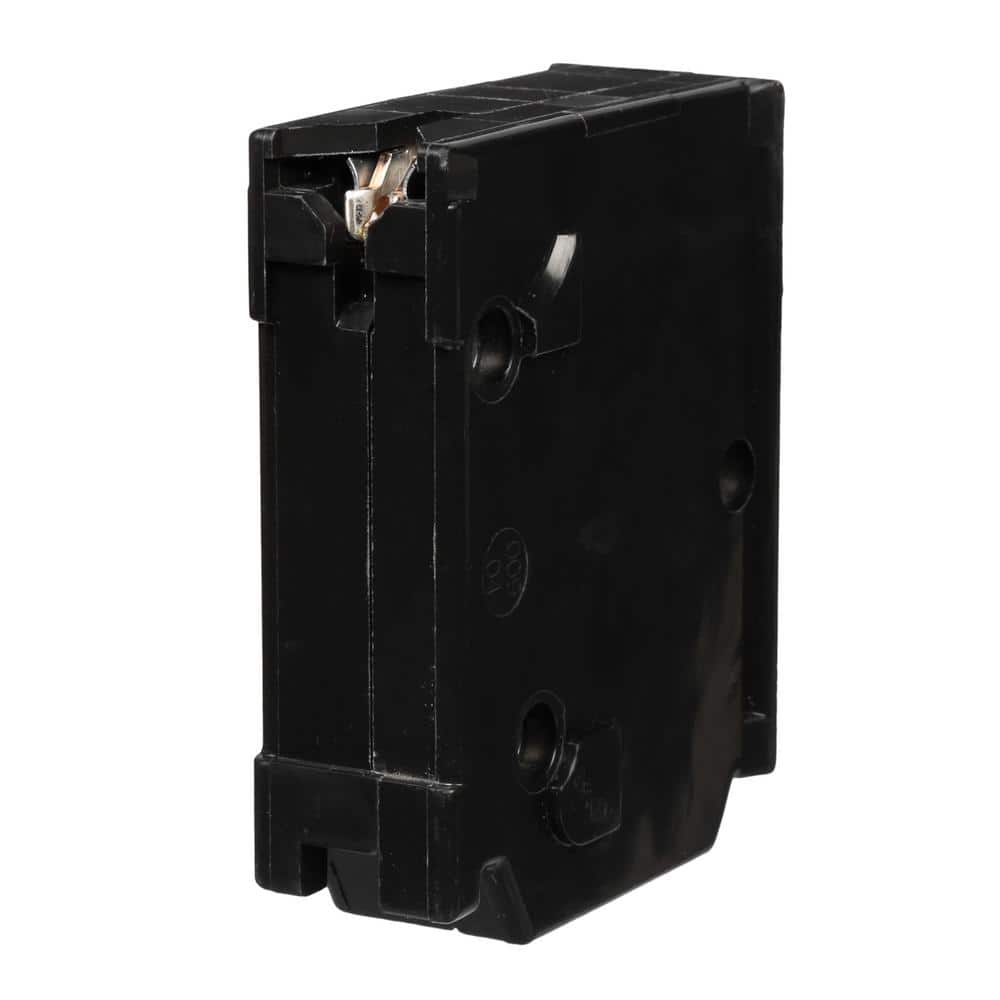

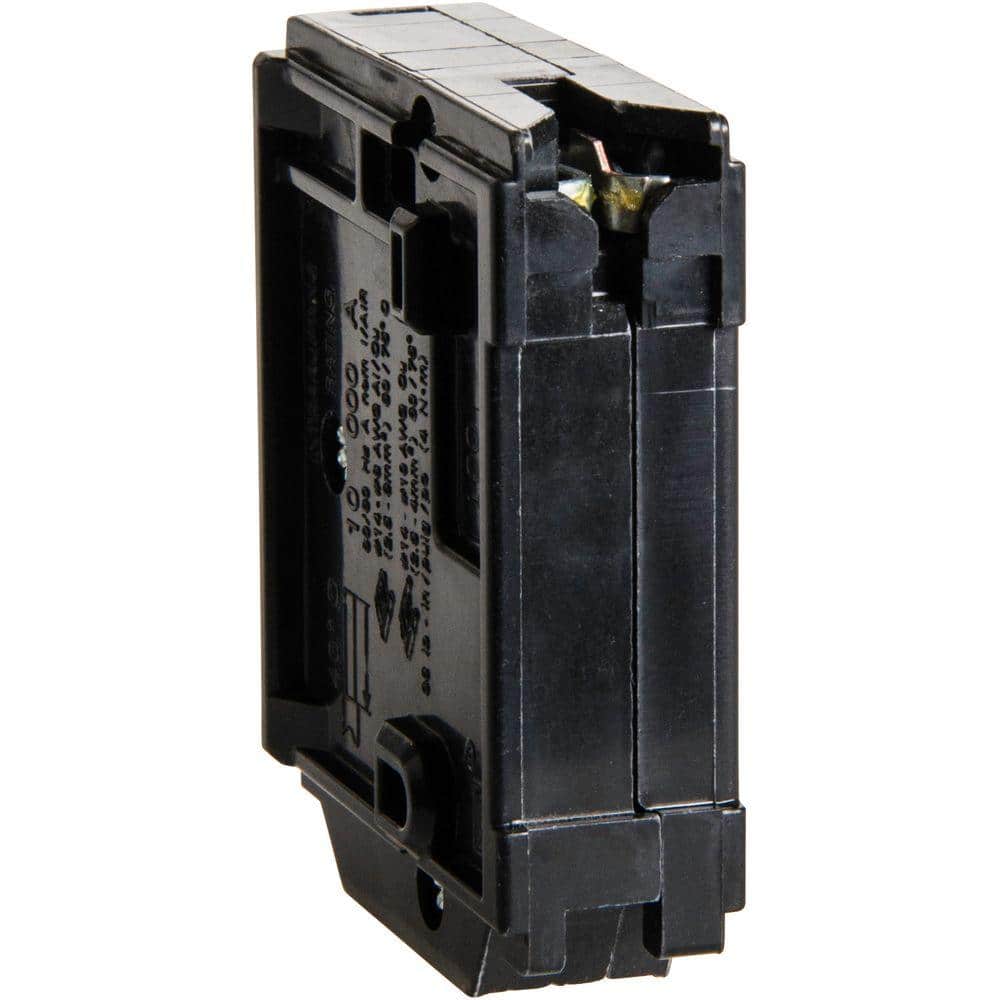

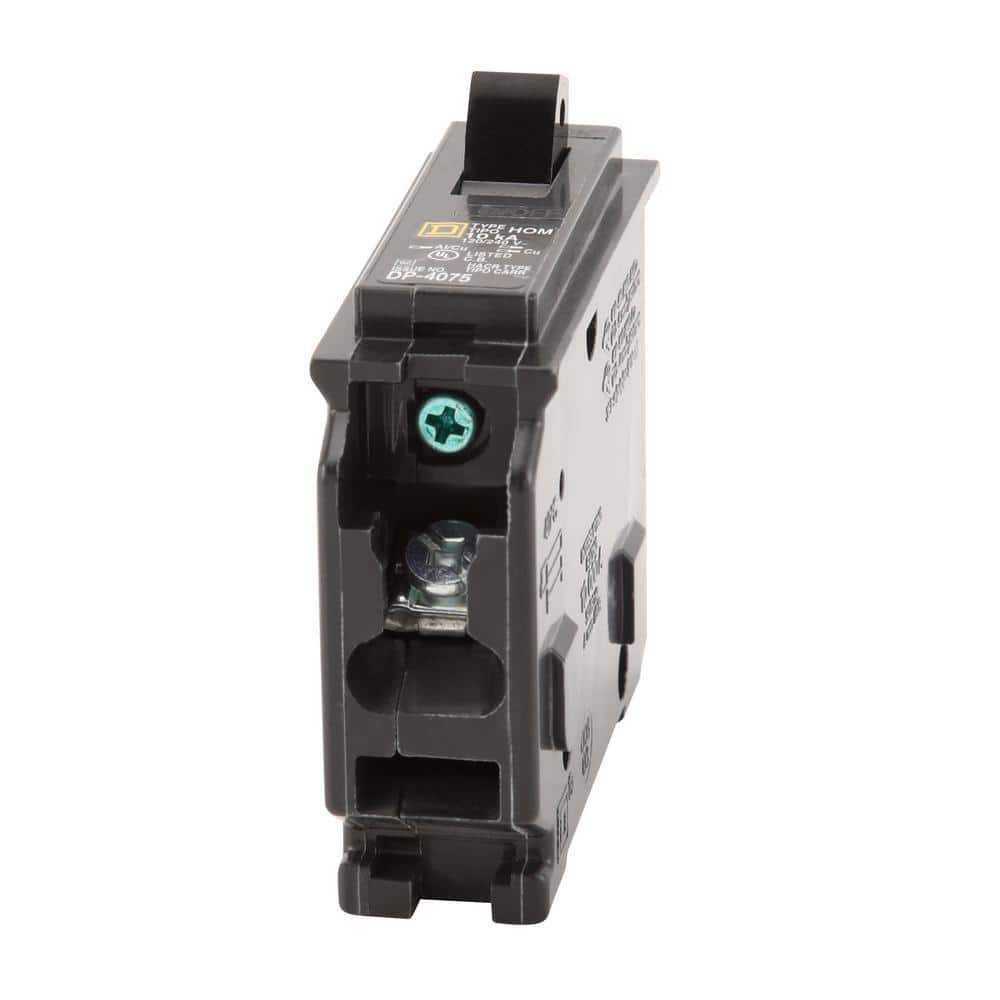

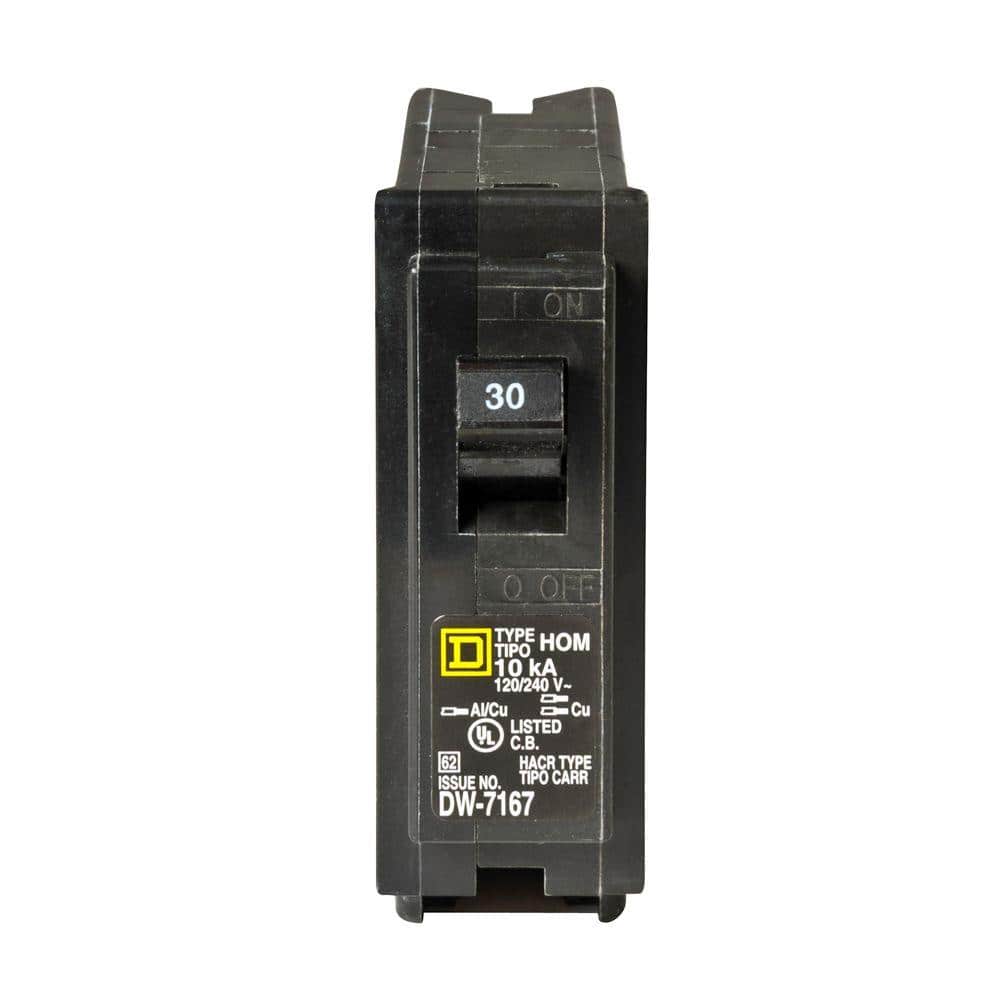

Homeline 30A Single-Pole Breaker

A dependable Square D Homeline 30A single-pole circuit breaker for protecting residential branch circuits from overloads and short circuits. Plug-on design fits Homeline panels and CSEDs, rated 120/240 VAC with 10,000 AIR and thermal-magnetic trip.

---

Key Features:

• Thermal-Magnetic Protection: Standard trip unit safeguards against overloads and short circuits
• Homeline Compatibility: Plug-on installation for Homeline load centers and CSEDs using 1 space
• Reliable Performance: 10 kA interrupt rating with UL Listed certification
• Compact Design: Slim 1 in. width for easy panel fit; dimensions 3.13 in H x 2.98 in D
• Durable Build: Square D quality engineered for residential applications

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Maximum Amperage	30 A
Poles	Single-pole
Voltage	120/240 VAC
AIC Rating	10,000 AIR
Trip Unit	Thermal Magnetic
Breaker Type	Standard
Interruption Type	Standard Trip
Mounting Type	Plug-On
Connection Type	Non-Neutral
Number of Spaces Required	1
Pack Size	1
Certifications	UL Listed, ANSI compliant
Product Height	3.13 in
Product Depth	2.98 in
Product Width	1 in

---

Frequently Asked Questions (FAQ):

Q: What panels is this breaker compatible with?
A: It is designed for Square D Homeline load centers and CSED devices that have an available single space.

---

Q: What is the interrupt rating?
A: 10,000 AIR (Amps Interrupting Rating).

---

Q: What voltage is it rated for?
A: 120/240 VAC.

---

Q: Is it UL listed?
A: Yes, it is UL Listed.

---

Q: What type of trip unit does it have?
A: A thermal-magnetic, standard trip unit.

---

Streamlined Safety with Minimal Footprint

This sleek, understated breaker brings a quiet assurance to your electrical layout—performance without visual noise. The slim 1-inch profile keeps panels clean and organized, while the Homeline geometry delivers a crisp, architectural order. Pair it with a clearly labeled panel schedule for a refined, functional utility space. Consider it the essential foundation for a home that runs as beautifully as it looks.

---

Choose this Square D Homeline 30A breaker for fast plug-on installation and reliable protection in your Homeline panel.
