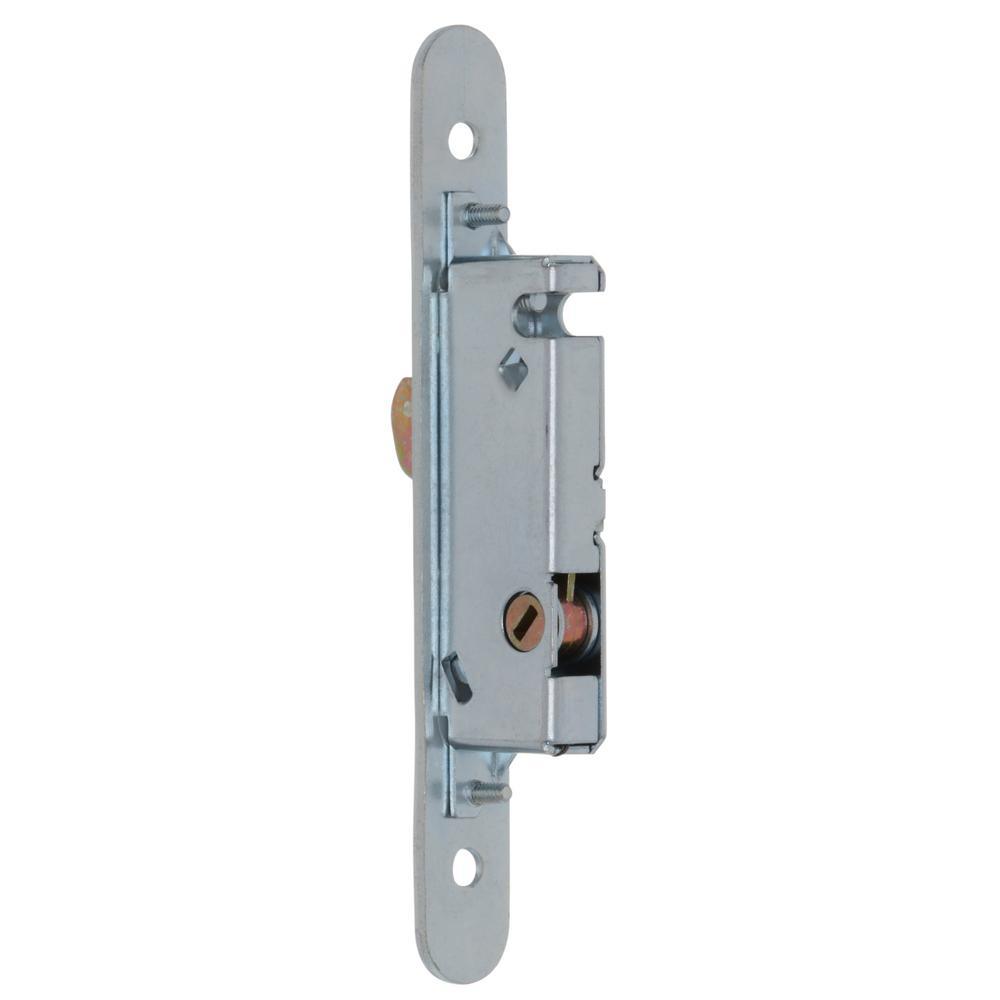

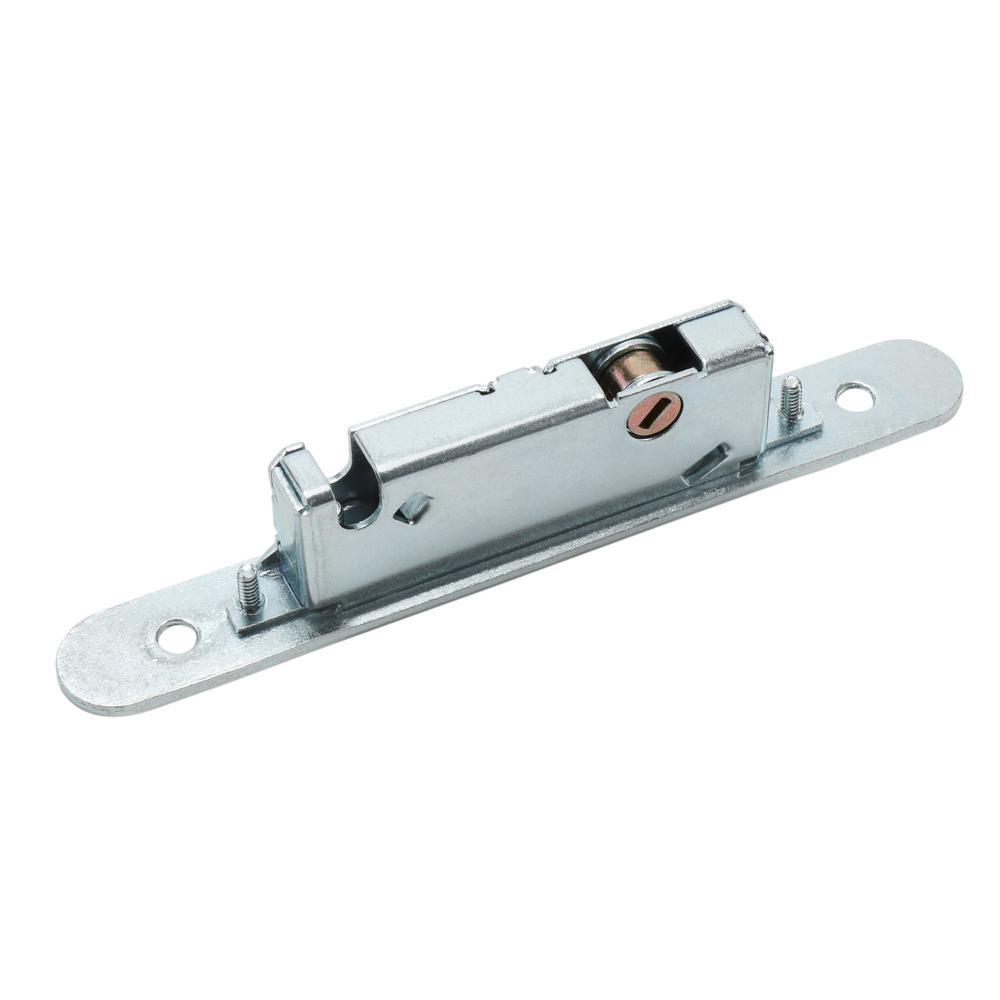

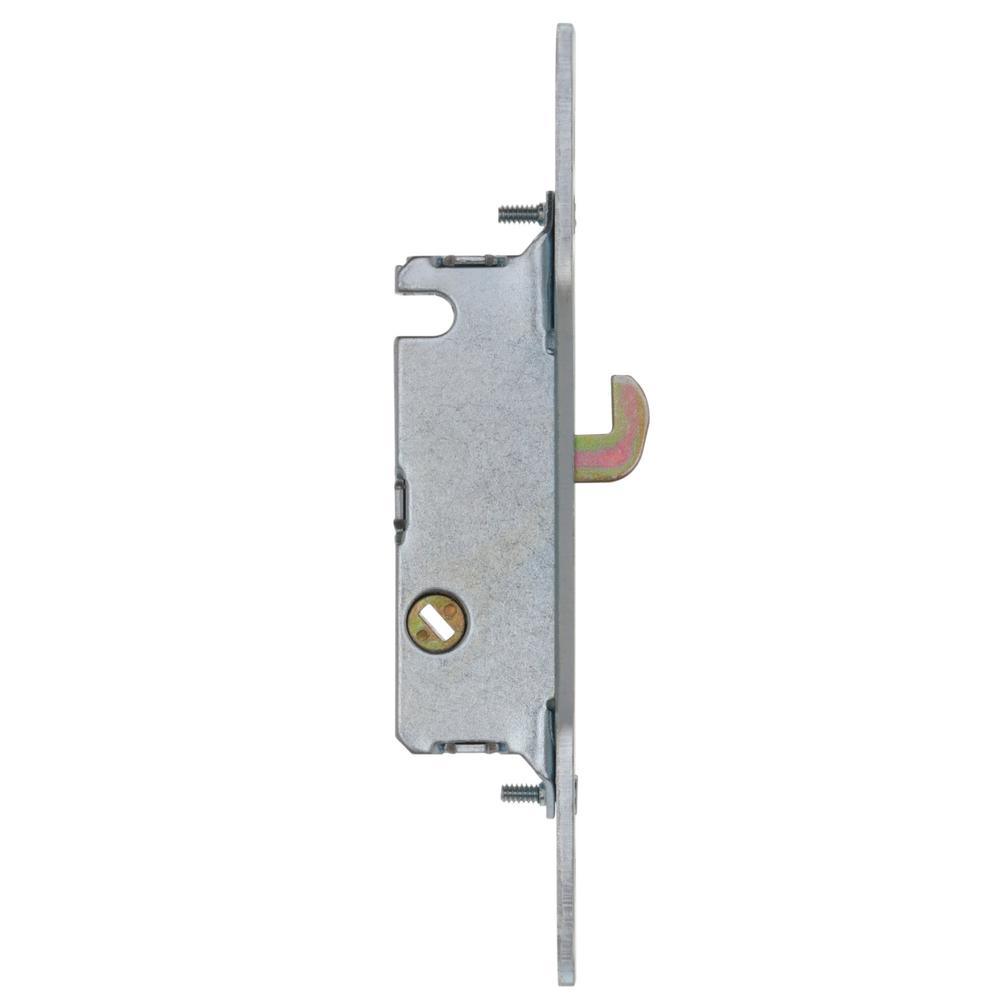

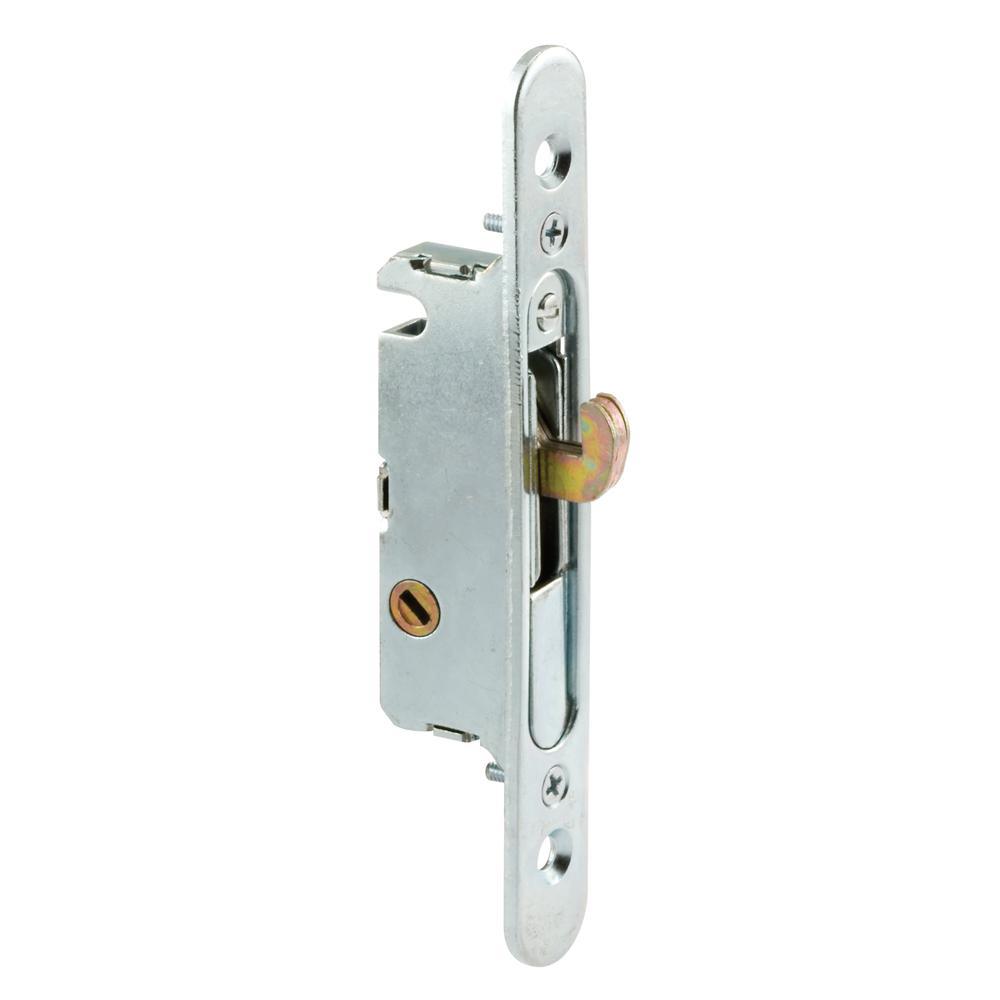

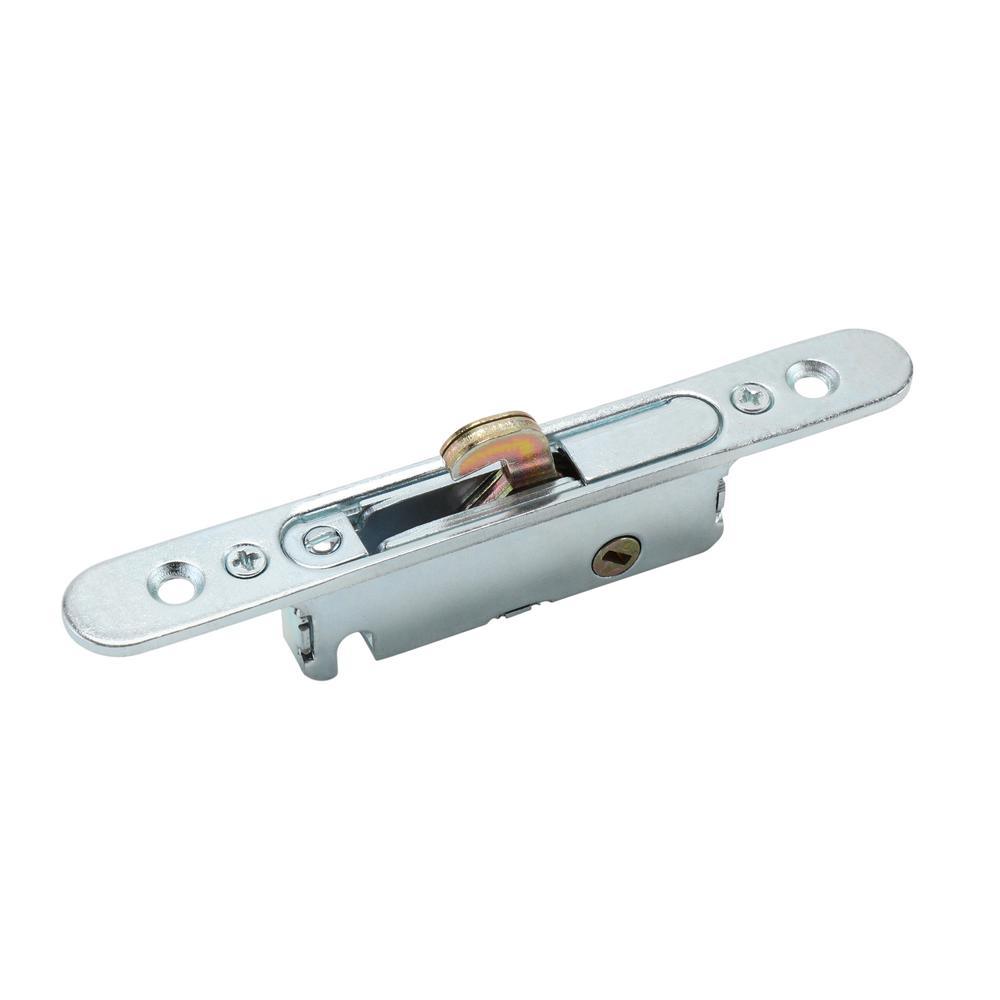

Mortise Lock, 4-5/8 in., Steel, 45 Degree Keyway, Round Faceplate, Spring-Loaded

$14.98

/
Shipping calculated at checkout.
Keep your sliding patio door secure with this Rounded Faceplate Mortise Lock. The steel housing and hook have a round end faceplate with mounting holes at 4-5/8 in. and 3-11/16 in. on the center. The keyway is at 45 degrees with the hook fully extended. For use on wood and vinyl patio doors.
  • Used to replace damaged or missing mortise locks in sliding patio doors constructed of both wood and vinyl
  • 1/2 in. wide x 1-1/8 in. deep x 3-3/16 in. faceplate height with 4-5/8 in. mounting hole center spacing and 45 degree keyway
  • Features square corner housing with rounded faceplate ends
  • Steel construction
  • Round end faceplate with spring-loaded adjustable hook
  • Mortise style installation
  • Used by a variety of patio door manufactures

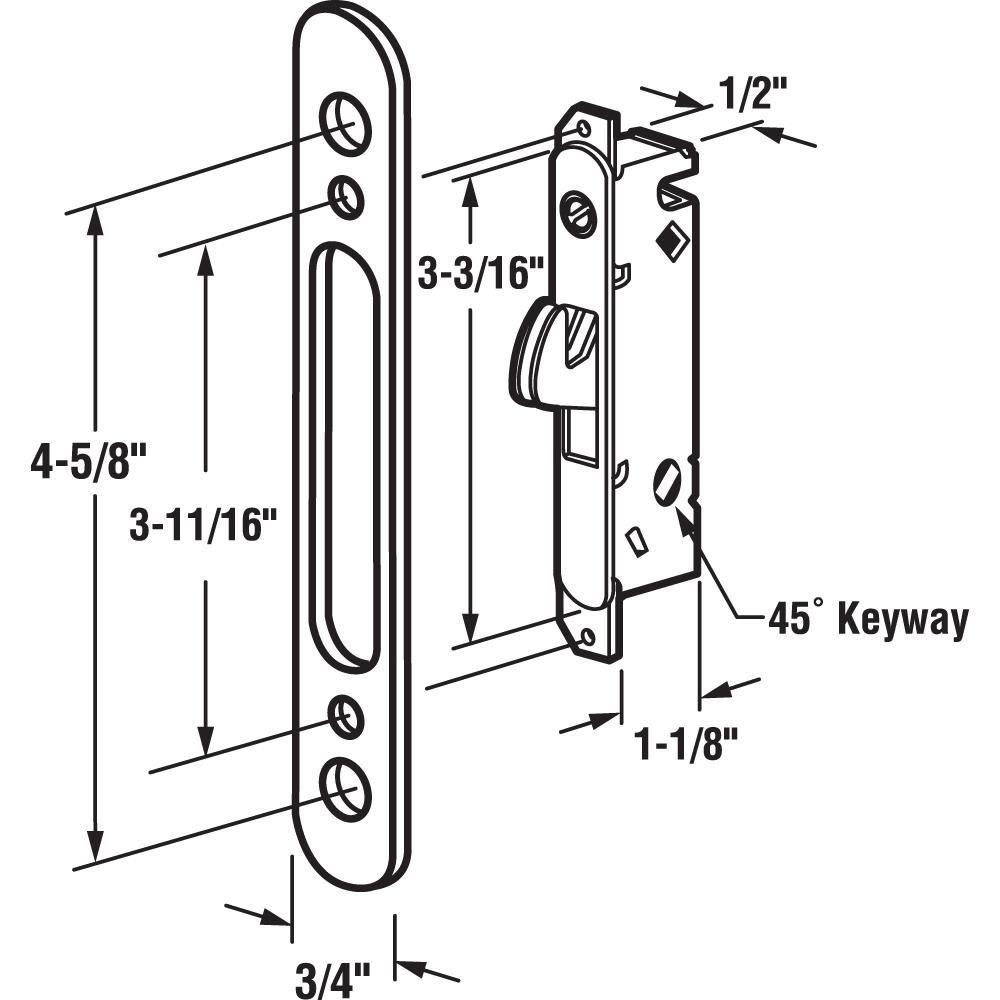

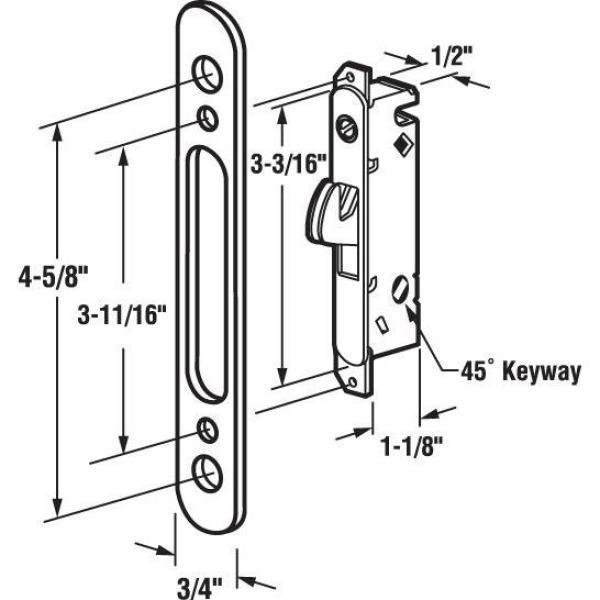

  • For further dimensional information, please see the line drawing


Features
Item Weight 0.375
Product Weight (lb.) 0.375 lb
Mounting Hardware Included Yes
Safety & Security Product Type Door Frame Reinforcer
Commercial/Residential Residential
Commercial / Residential Commercial / Residential
Color Family Metallics
Returnable 30-Day
Product Width (in.) 3.813 in
Product Depth (in.) 1.125 in
Product Height (in.) 9.438 in
Manufacturer Warranty Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
