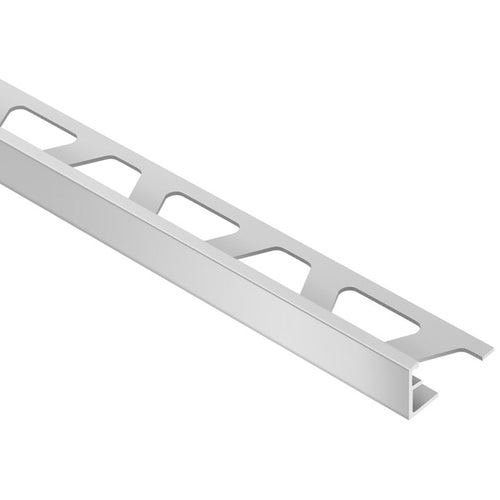

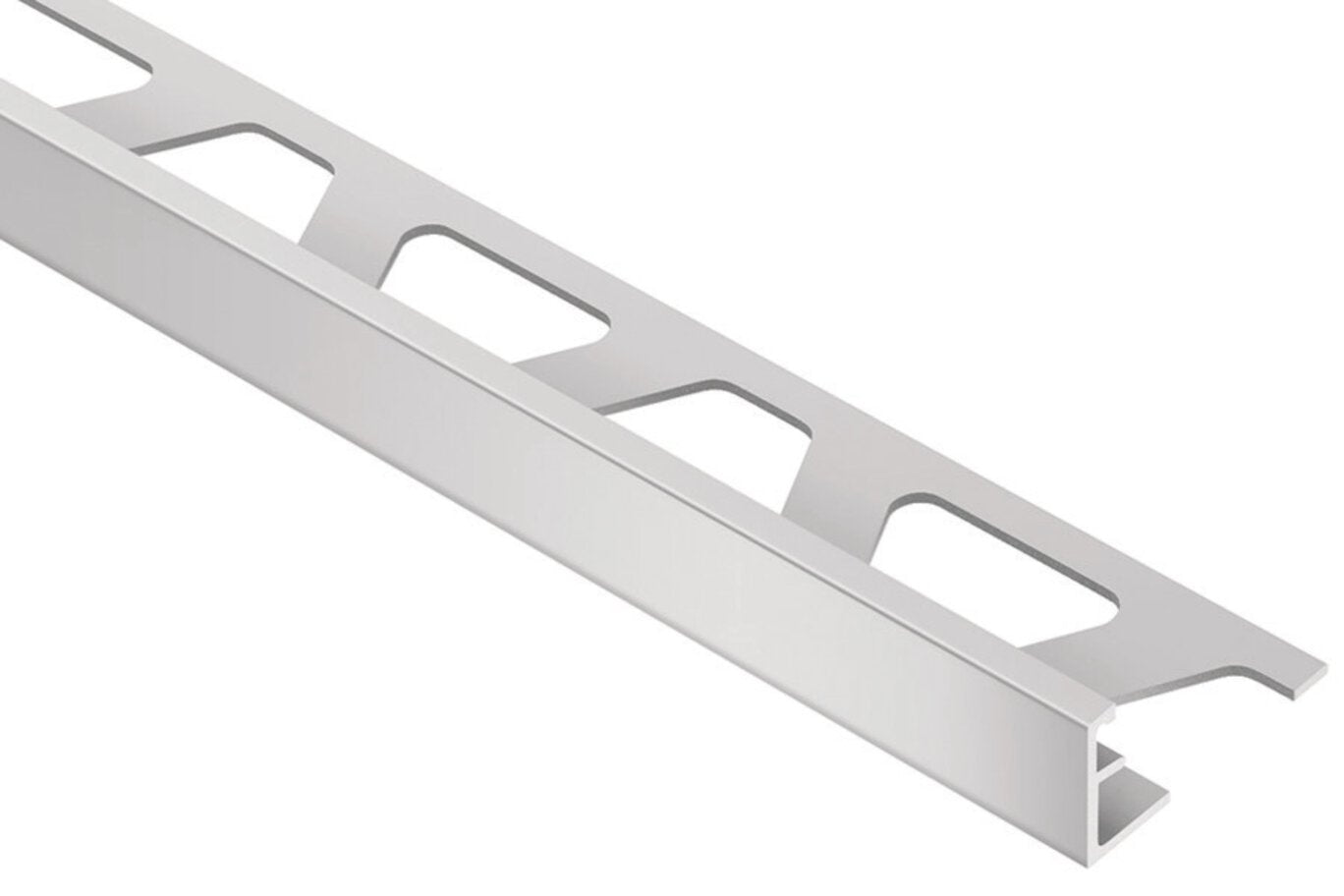

Satin anodized aluminum tile edge trim, 0.5-in x 98.5-in

The Schluter SCHIENE profile provides clean, durable edge protection for floor tile transitions. Its satin anodized aluminum L-angle features an 87° slope and a minimal 1/8-in reveal to guard tile edges and create elegant, same-height transitions to carpet or other surfaces.

---

Key Features:

• Edge Protection: 87° sloped L-angle shields tile edges and helps prevent chipping at transitions
• Discreet Finish: Narrow ~1/8 in visible reveal delivers a clean, minimal look

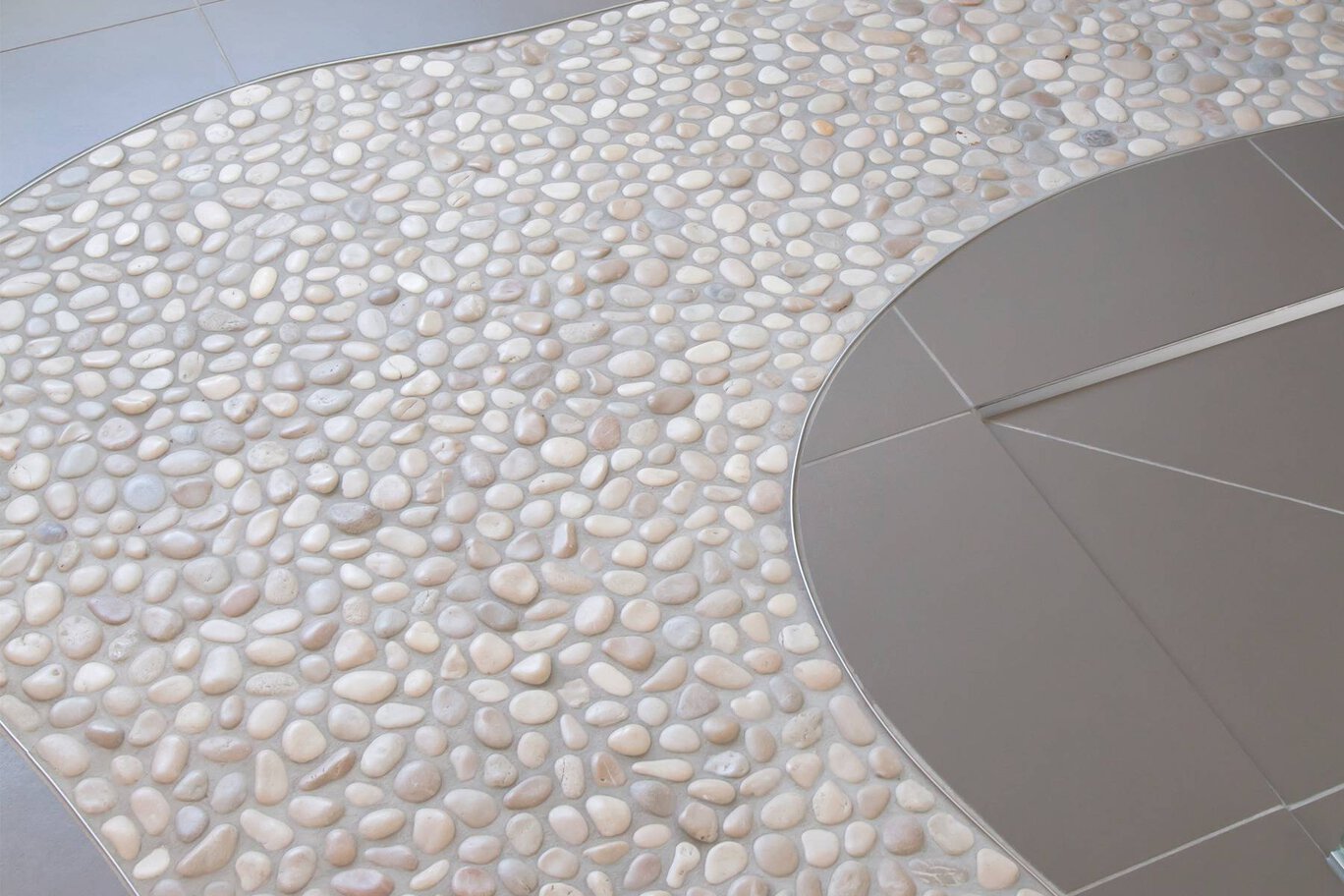

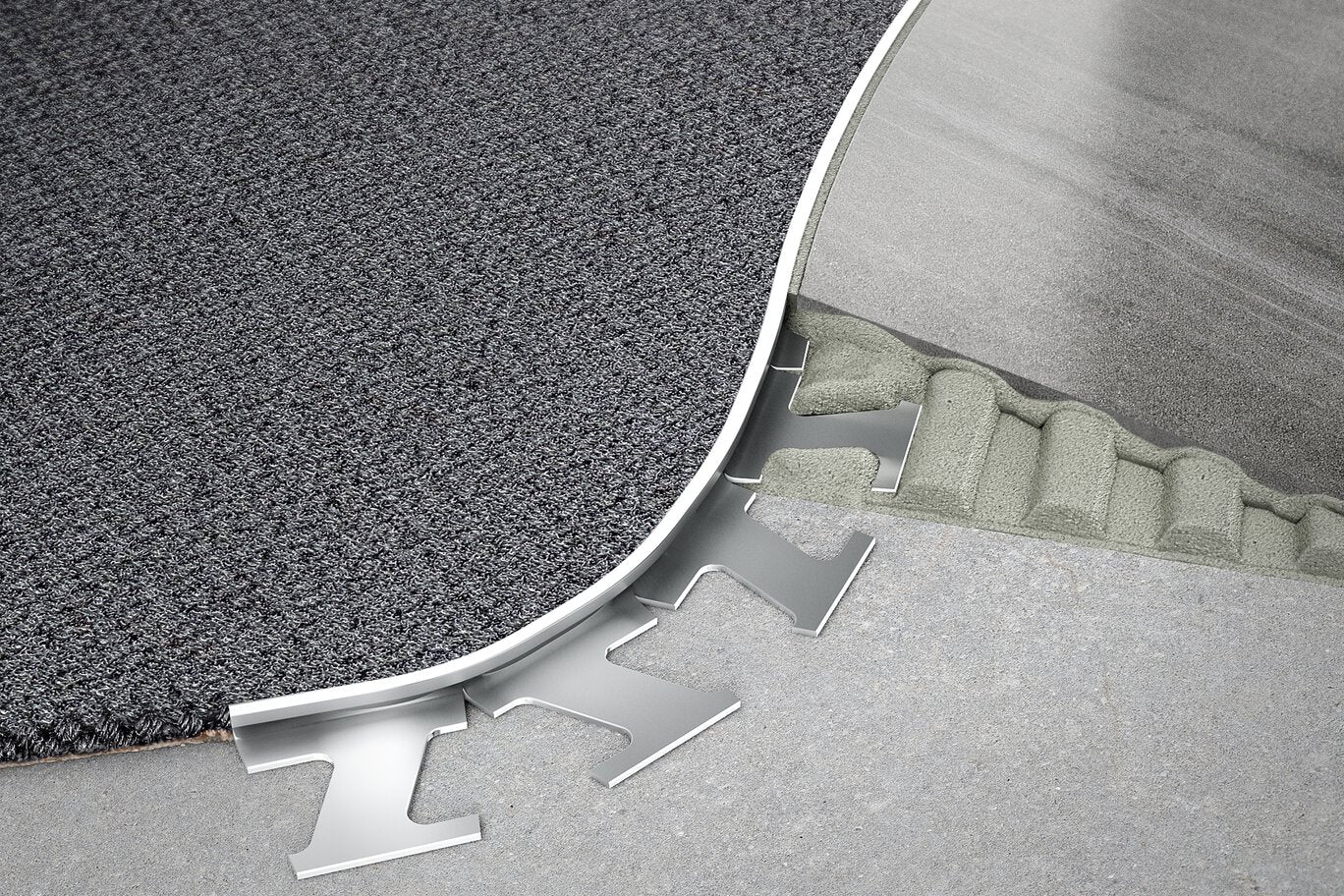

• Easy Forming: Optional radius perforations on anchoring leg allow curved installations
• Durable Build: Made from satin anodized aluminum for corrosion-resistant performance

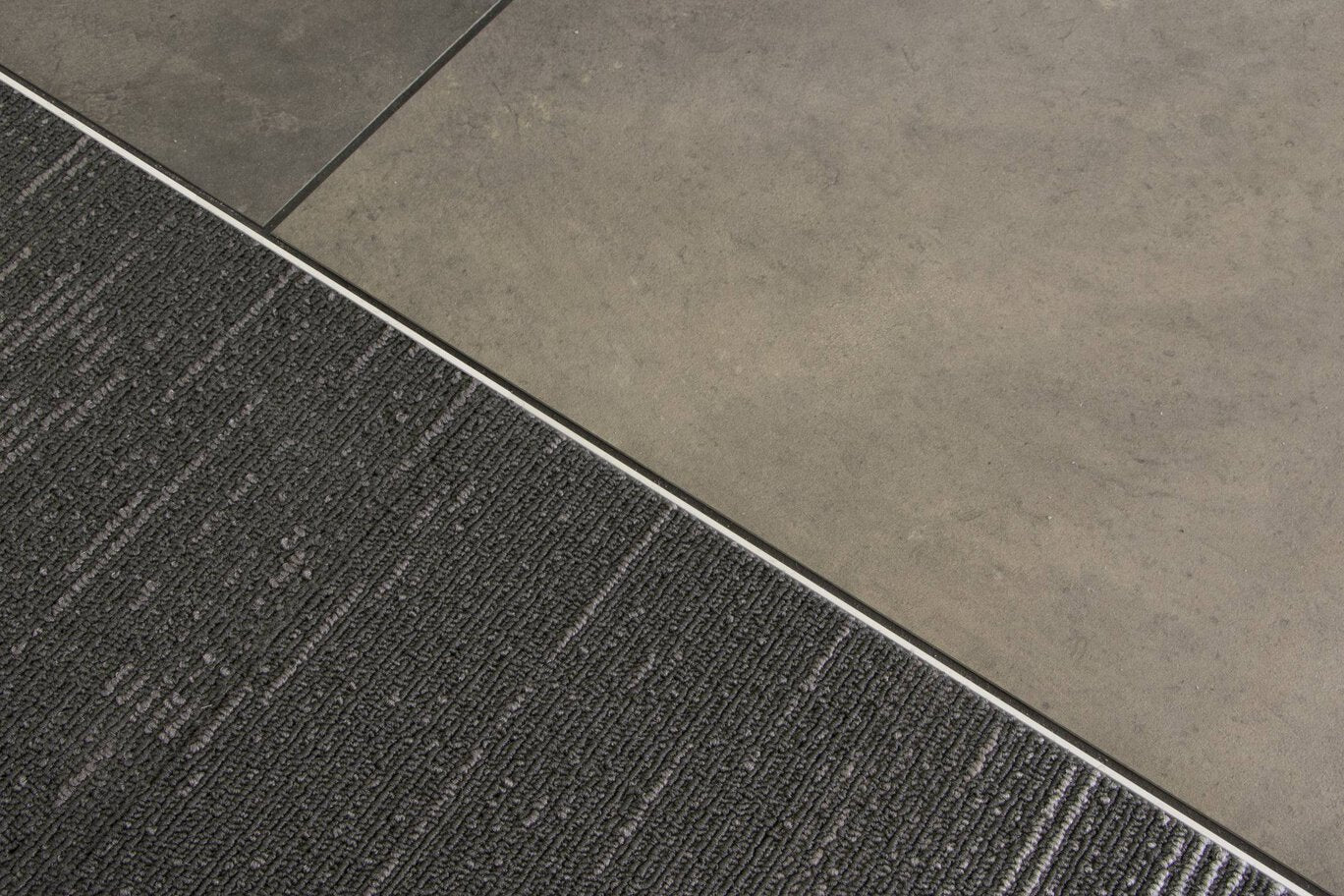

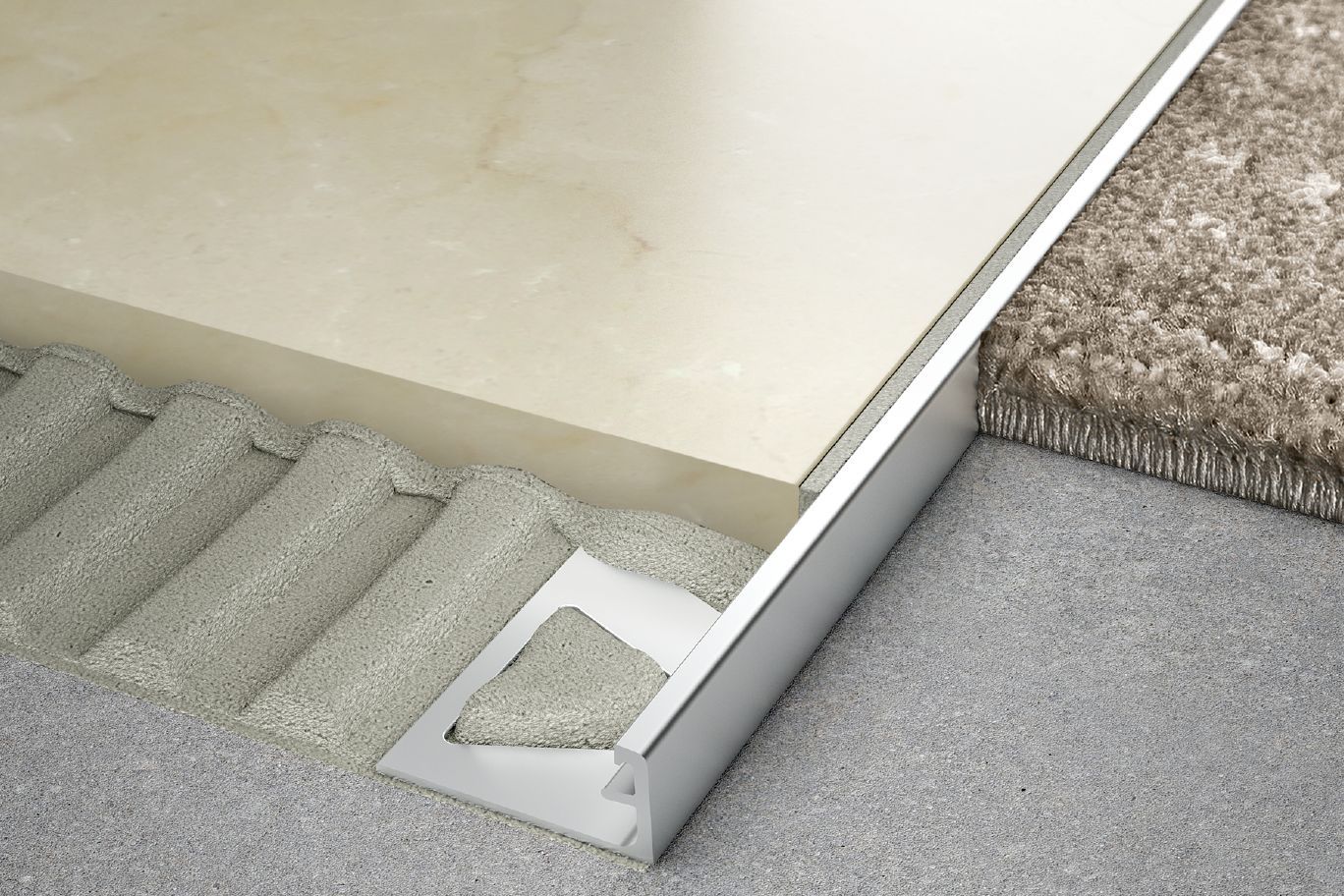

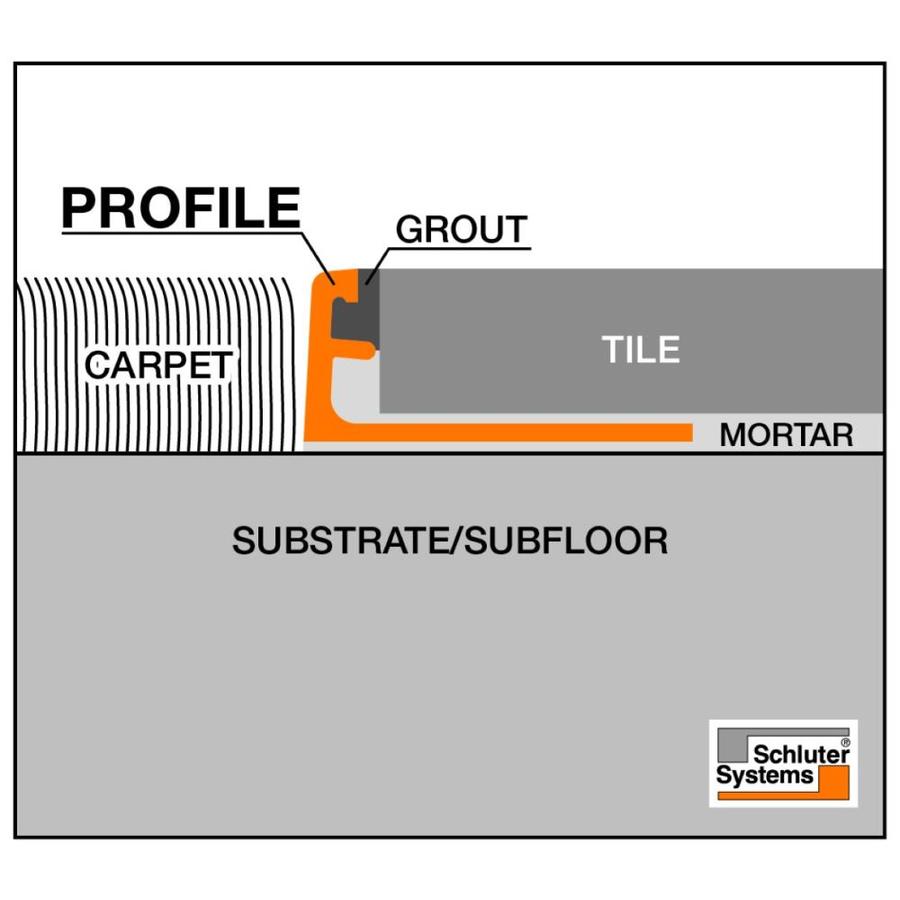

• Versatile Use: Ideal for transitions between tile and carpet or other floor coverings

---

Specifications Table:

Specification	Details
Profile name	Schluter SCHIENE
Profile type	L-angle, same-height transition
Material	Satin anodized aluminum
Width (visible reveal)	Approx. 1/8 in (3 mm)
Overall width	0.5 in
Length	98.5 in
Edge slope	87° to transfer point loads and protect tile edges
Curved installation	Anchoring leg available with radius perforations to form curves
Typical applications	Transitions between tile and carpet or other floor coverings; expansion joints; decorative edging
Available materials (family)	Stainless steel, solid brass, aluminum, anodized aluminum, textured color-coated aluminum
Select finishes length option (family)	Also available in 10 ft (3.05 m) lengths in select finishes

---

Frequently Asked Questions (FAQ):

Q: Can SCHIENE be used for curved transitions?
A: Yes. Versions with a special radius perforation in the anchoring leg can be formed to create curves.

---

Q: What is the visible reveal once installed?
A: Approximately 1/8 inch (3 mm), providing a subtle transition line.

---

Q: Where is SCHIENE typically installed?
A: At same-height transitions between tile and adjacent floor coverings like carpet, at expansion joints, or as decorative edging.

---

Q: What materials is SCHIENE available in?
A: Stainless steel, solid brass, aluminum, anodized aluminum, and textured color-coated aluminum; this item is satin anodized aluminum.

---

Q: What is the standard length of this profile?
A: This listing is for a 98.5-inch (2.5 m) length.

---

A Sleek Line That Elevates Every Transition

SCHIENE draws a refined, architectural line between surfaces—crisp and quiet, yet undeniably polished. The satin anodized sheen and ultra-slim reveal create a tailored edge that flatters stone, porcelain, or carpet. Curve it softly around organic layouts or keep it razor-straight for a gallery-clean perimeter. It’s the finishing touch that makes everyday thresholds feel luxurious and intentional.

---

Complete your flooring project with SCHIENE’s refined protection—choose this satin anodized aluminum edge trim today.
