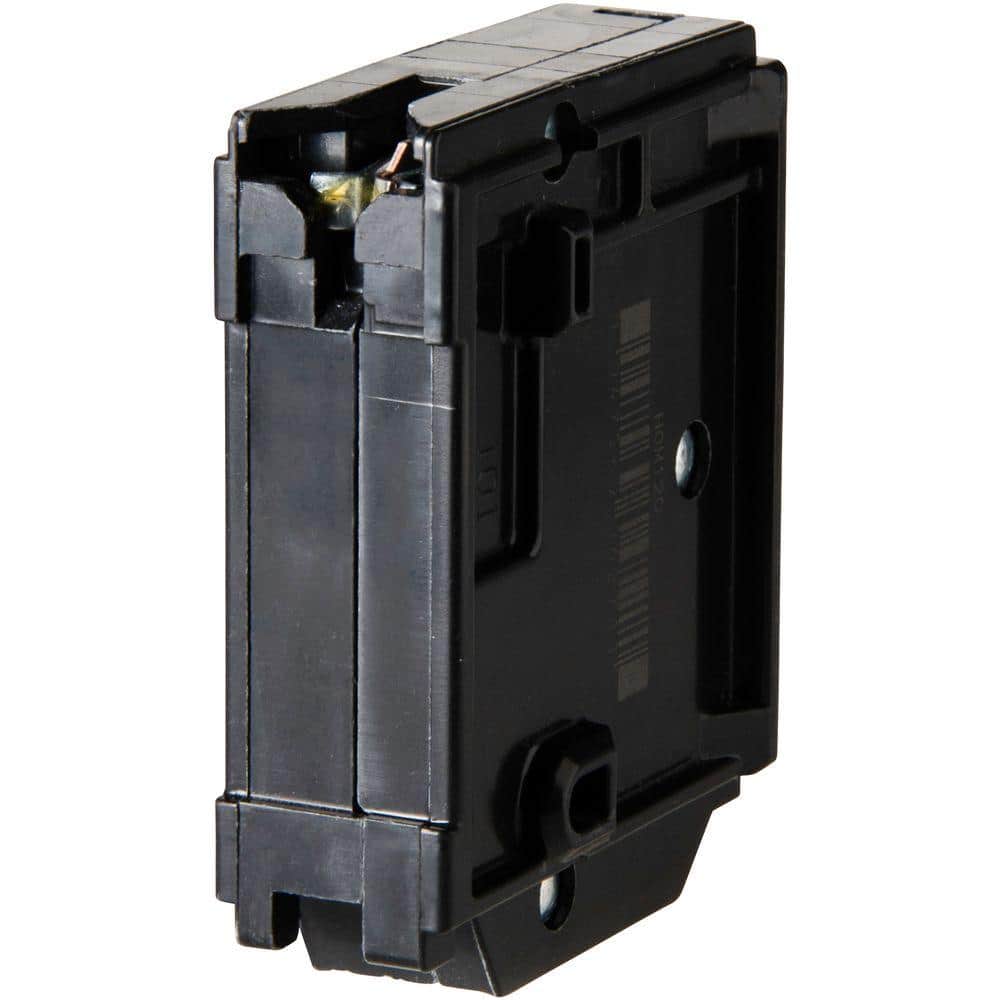

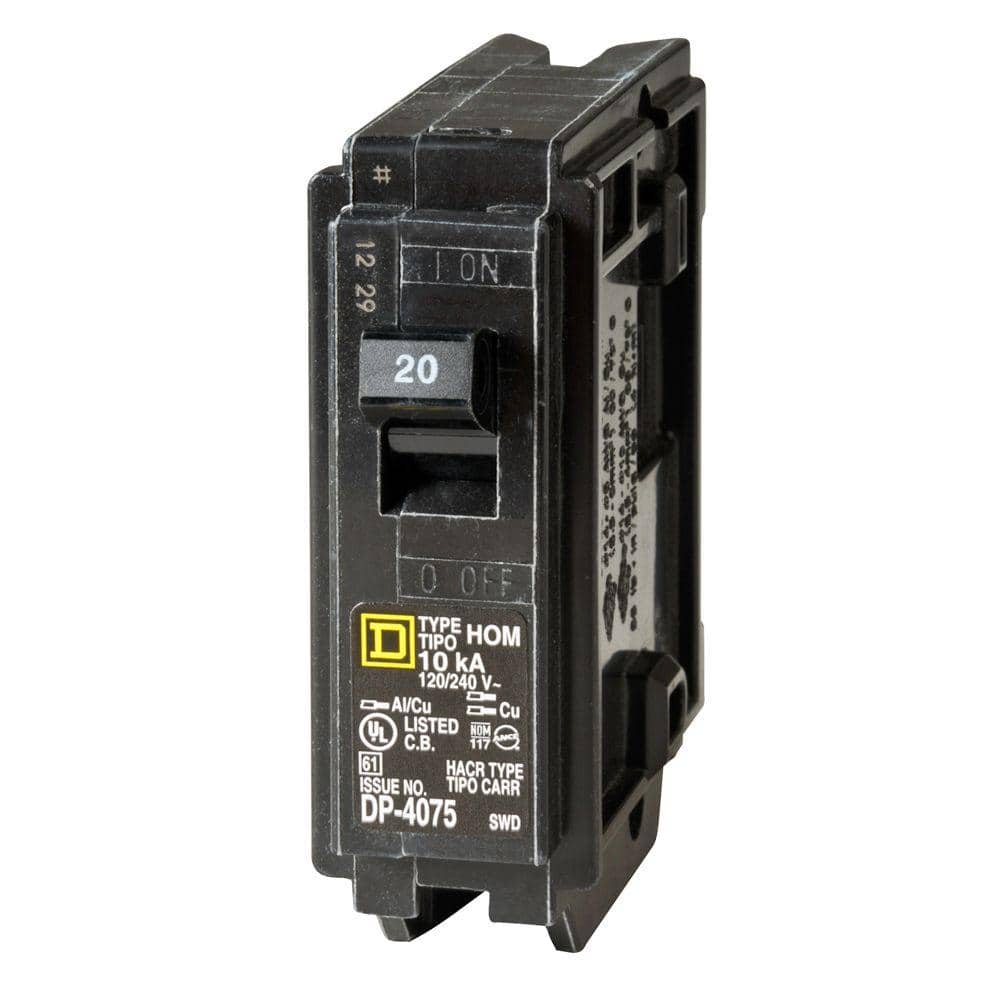

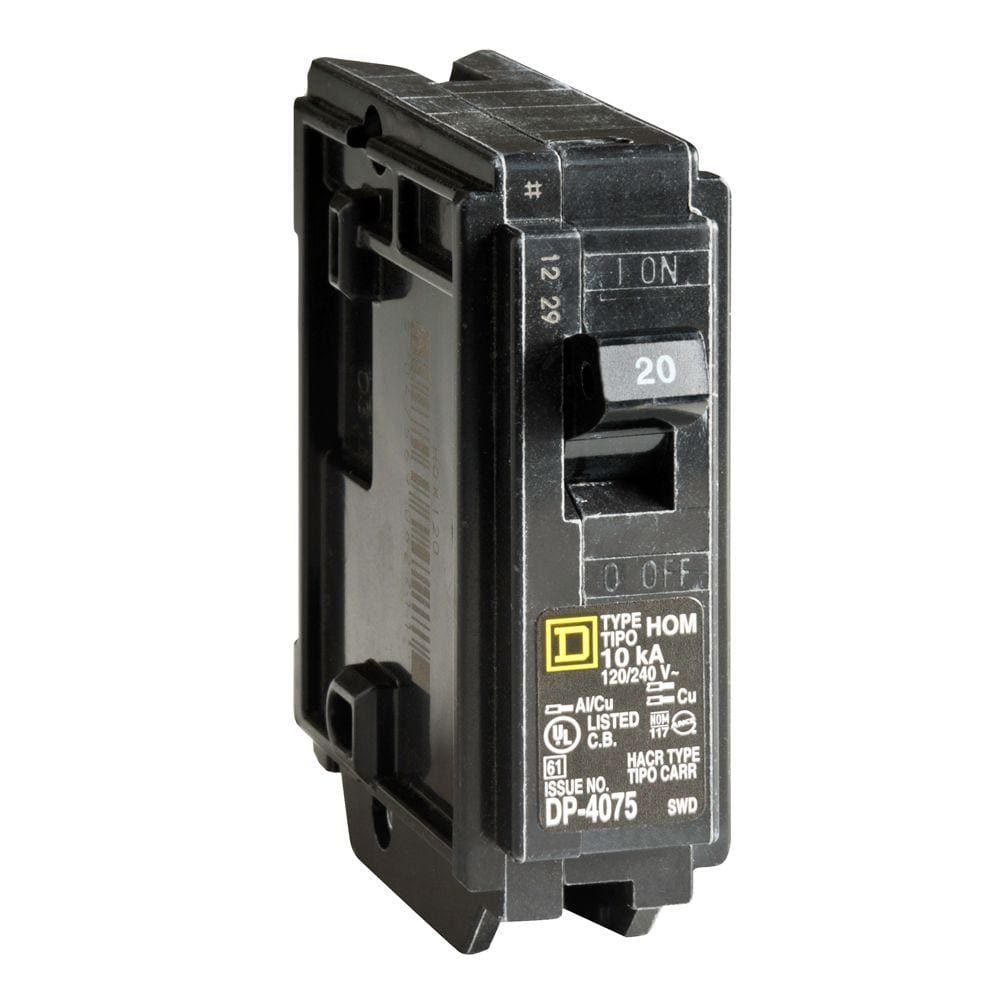

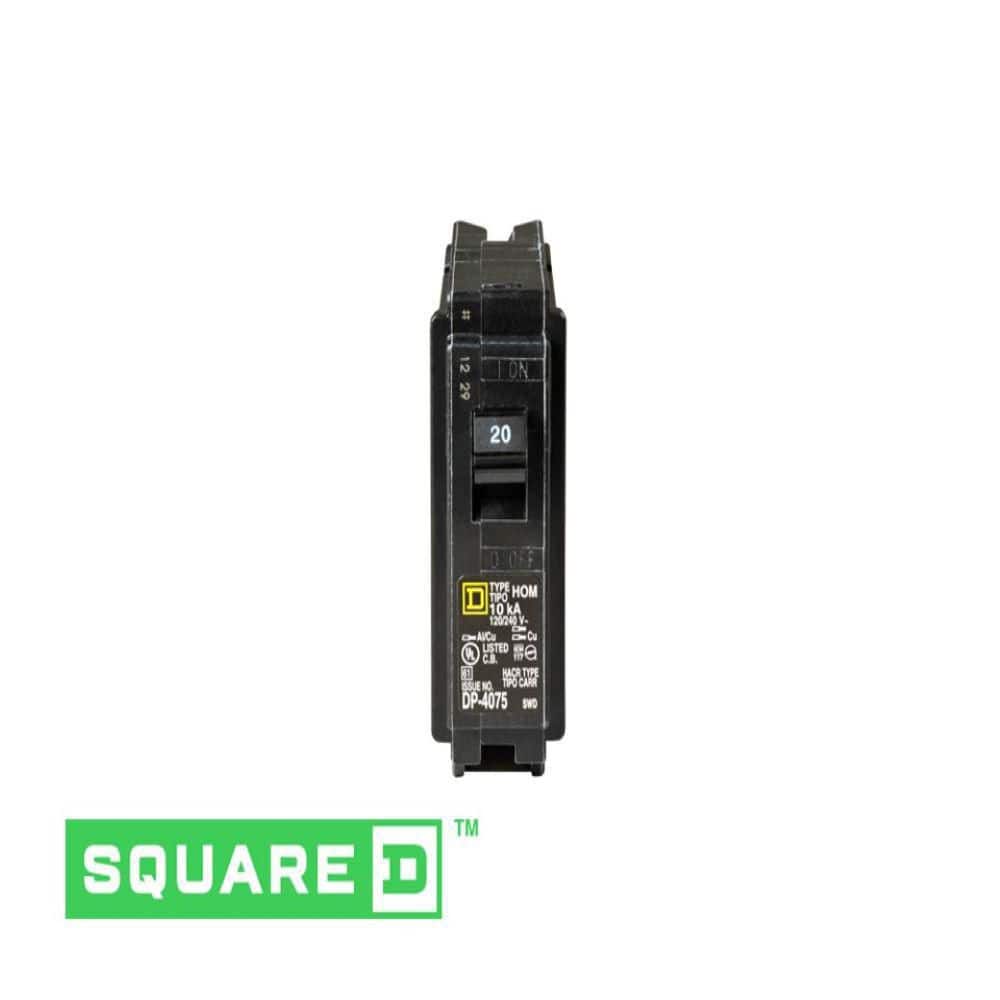

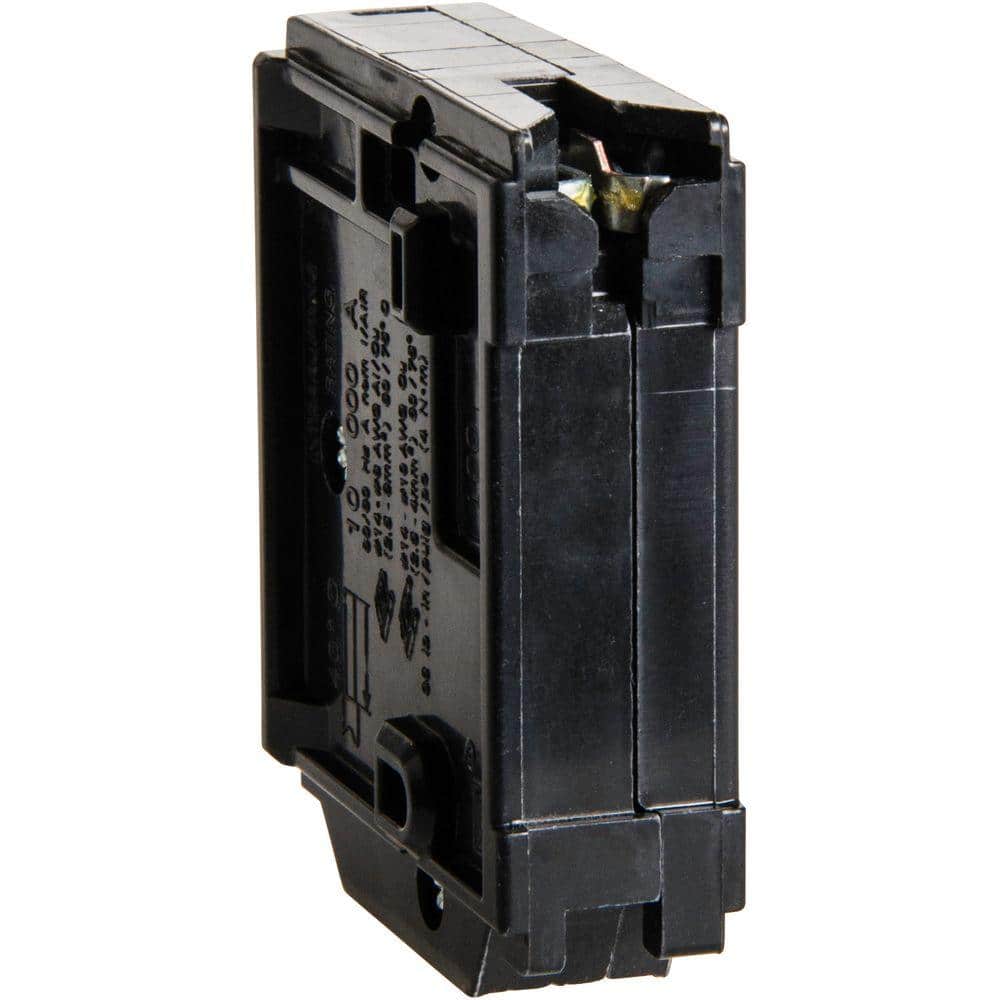

Homeline 20A Single-Pole Circuit Breaker

Compact, plug-on Square D Homeline 20A single-pole breaker provides reliable overload and short-circuit protection for residential branch circuits. UL Listed with a thermal-magnetic trip unit, it fits Homeline load centers and CSEDs and is rated 120/240 VAC with 10 kA interrupting capacity.

---

Key Features:

• Reliable Protection: Thermal-magnetic trip safeguards circuits from overloads and short-circuits
• Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs using 1 space
• Residential Ready: SWD rated 20A breaker ideal for lighting and general branch circuits
• Compact Dimensions: 3.13 in H x 2.98 in D x 1 in W for easy panel fit
• Tested & Listed: UL Listed with 10,000 AIC for dependable performance

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Breaker Type	Standard
Number of Poles	Single-pole
Amperage	20 A
Voltage	120/240 VAC
Interrupt Rating (AIC)	10,000
Trip Unit	Thermal Magnetic
Mounting Type	Plug-On
Connection Type	Non-Neutral
Spaces Required	1
Switching Duty	SWD (20A 1-pole)
Certifications	UL Listed, ANSI compliant
Dimensions (H x W x D)	3.13 in x 1 in x 2.98 in
Material Compatibility	Al/Cu conductors
Product Weight	0.28 lb
Application	Residential/commercial branch circuit protection

---

Frequently Asked Questions (FAQ):

Q: What panels does this breaker fit?
A: It is designed for Square D Homeline load centers and CSED devices using one space.

---

Q: What is the interrupt rating?
A: 10,000 AIC at 120/240 VAC.

---

Q: Is it suitable for aluminum or copper wire?
A: Yes, lugs are rated for Al/Cu conductors as indicated on the breaker label.

---

Q: What type of trip mechanism does it use?
A: Thermal-magnetic trip unit.

---

Q: Is there a warranty?
A: Square D provides a limited lifetime warranty for Homeline breakers when installed in a Homeline load center.

---

A Sleek, Workhorse Essential for Every Panel

This breaker is the quiet hero of a well-composed home—streamlined, resilient, and utterly dependable. The compact Homeline silhouette keeps your panel crisp and orderly, letting the rest of the space sing. Pair it with a clean, labeled directory for a polished, designer-worthy electrical closet. Reliable infrastructure is the foundation of luxury living, and this piece delivers it with ease.

---

Equip your panel with dependable protection—add the Homeline 20A breaker to your cart today.
