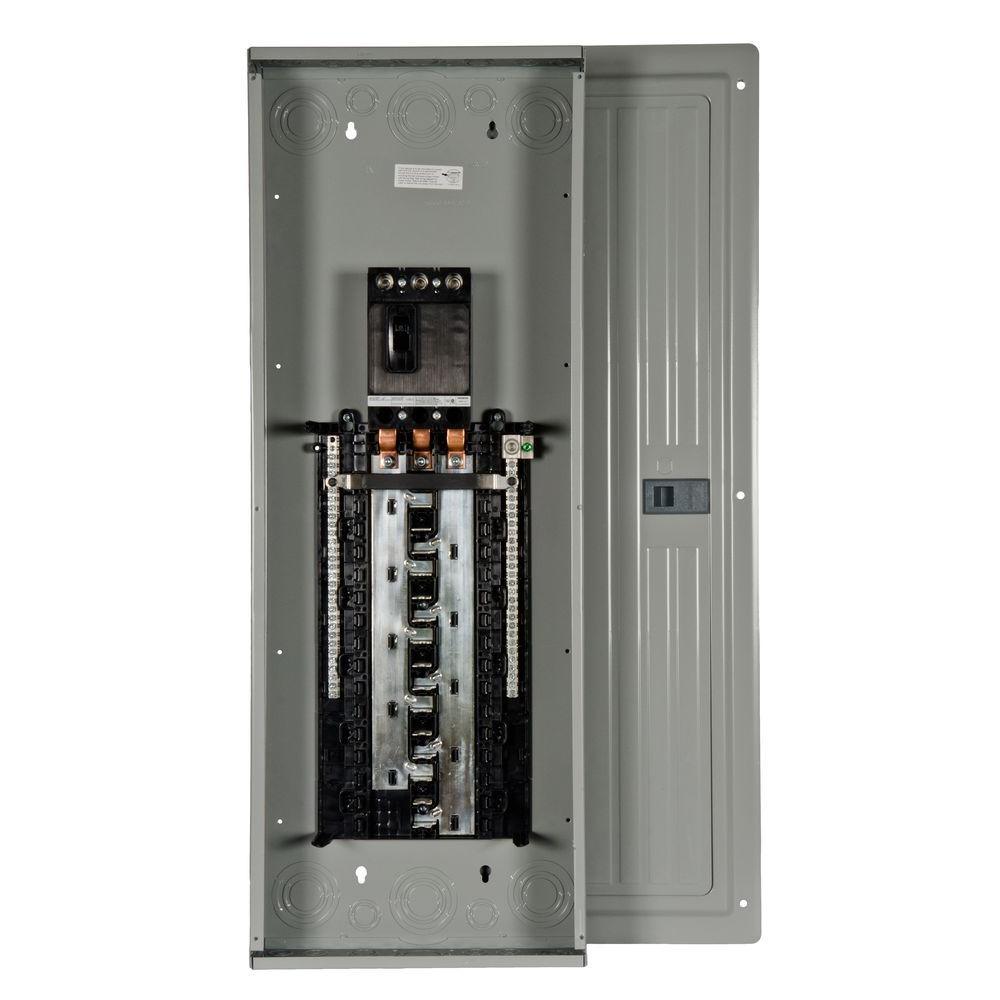

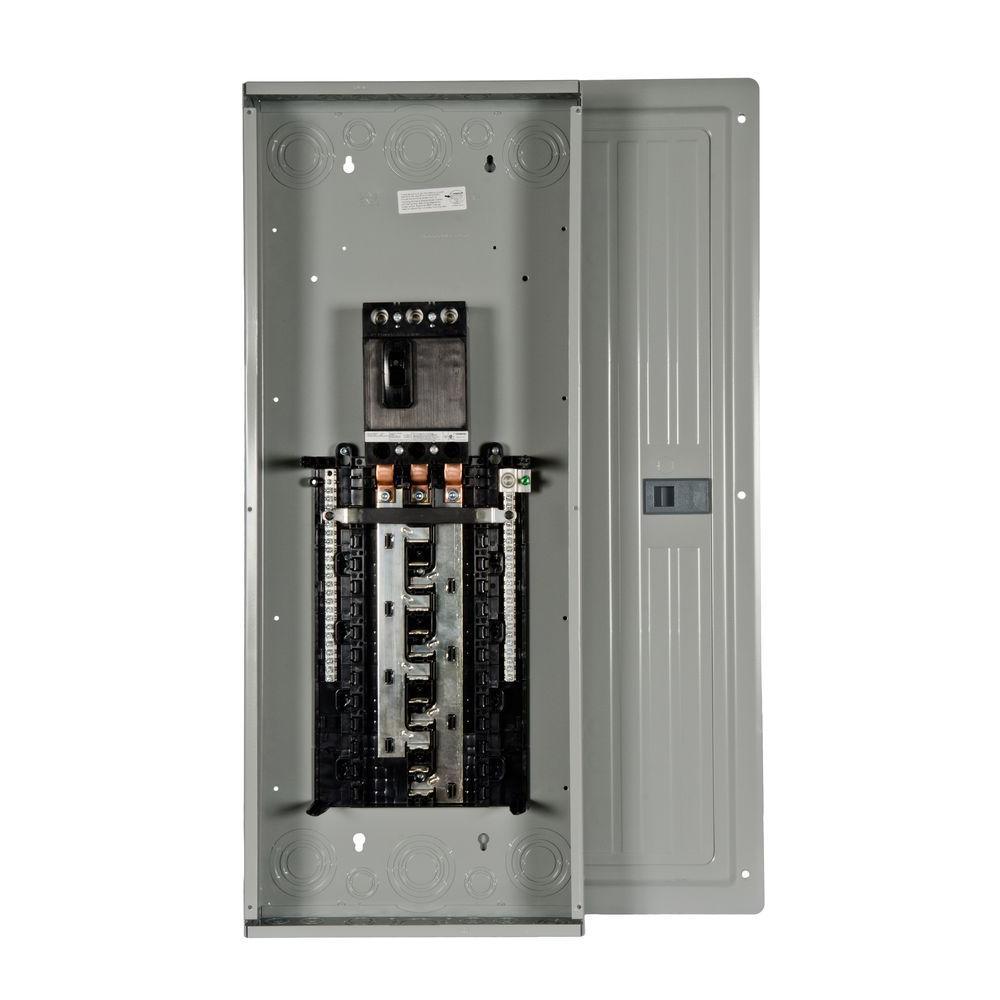

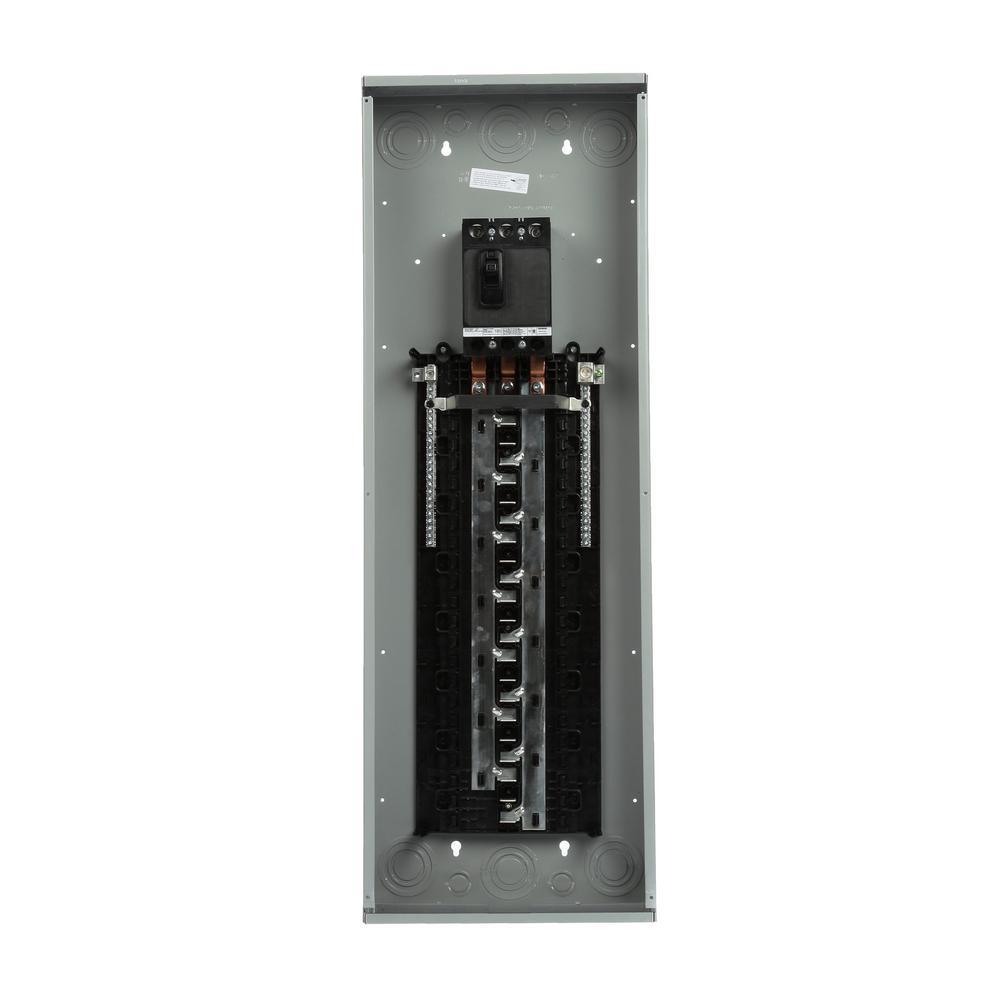

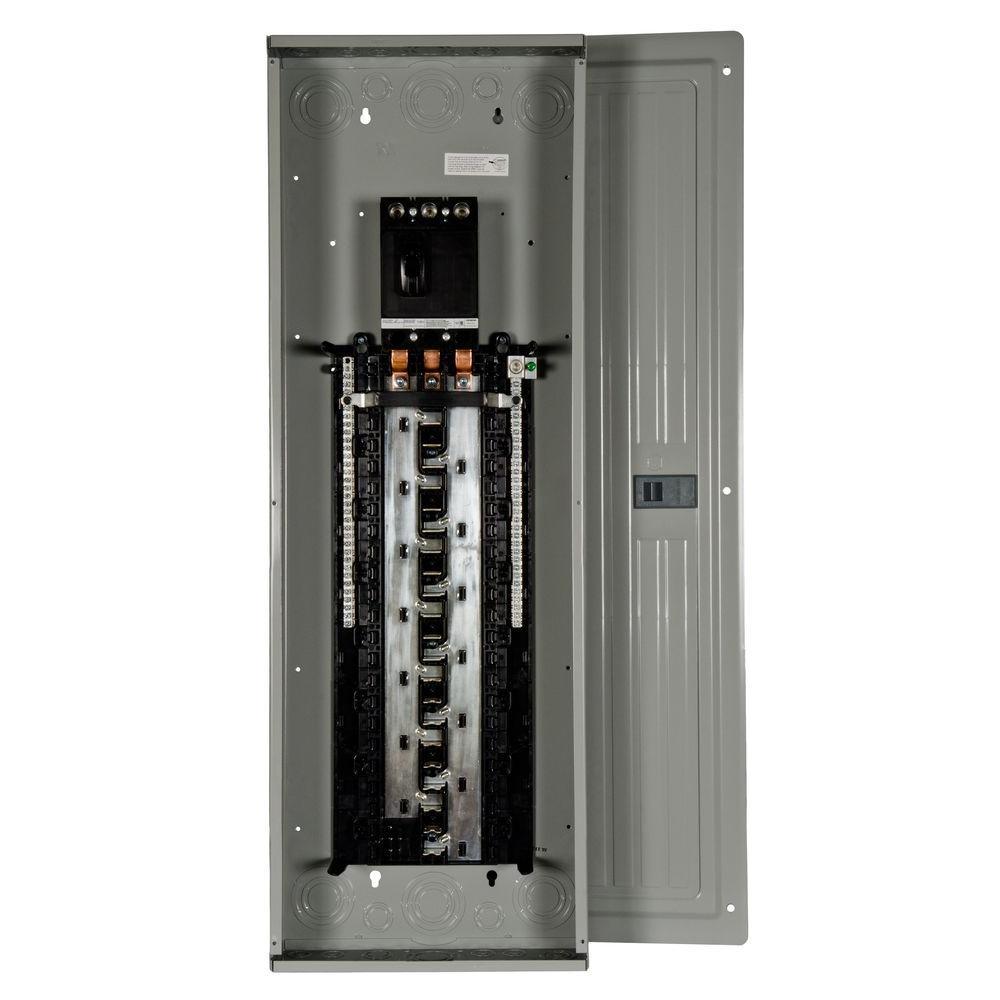

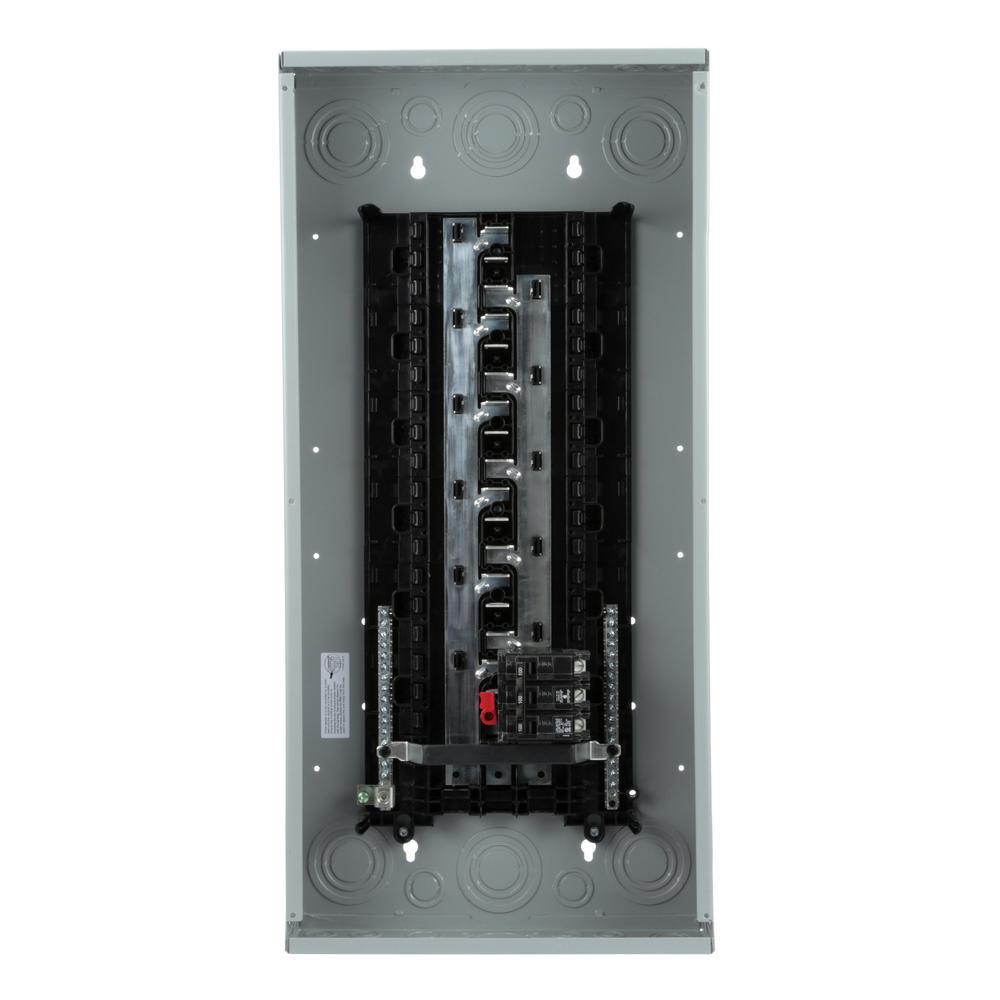

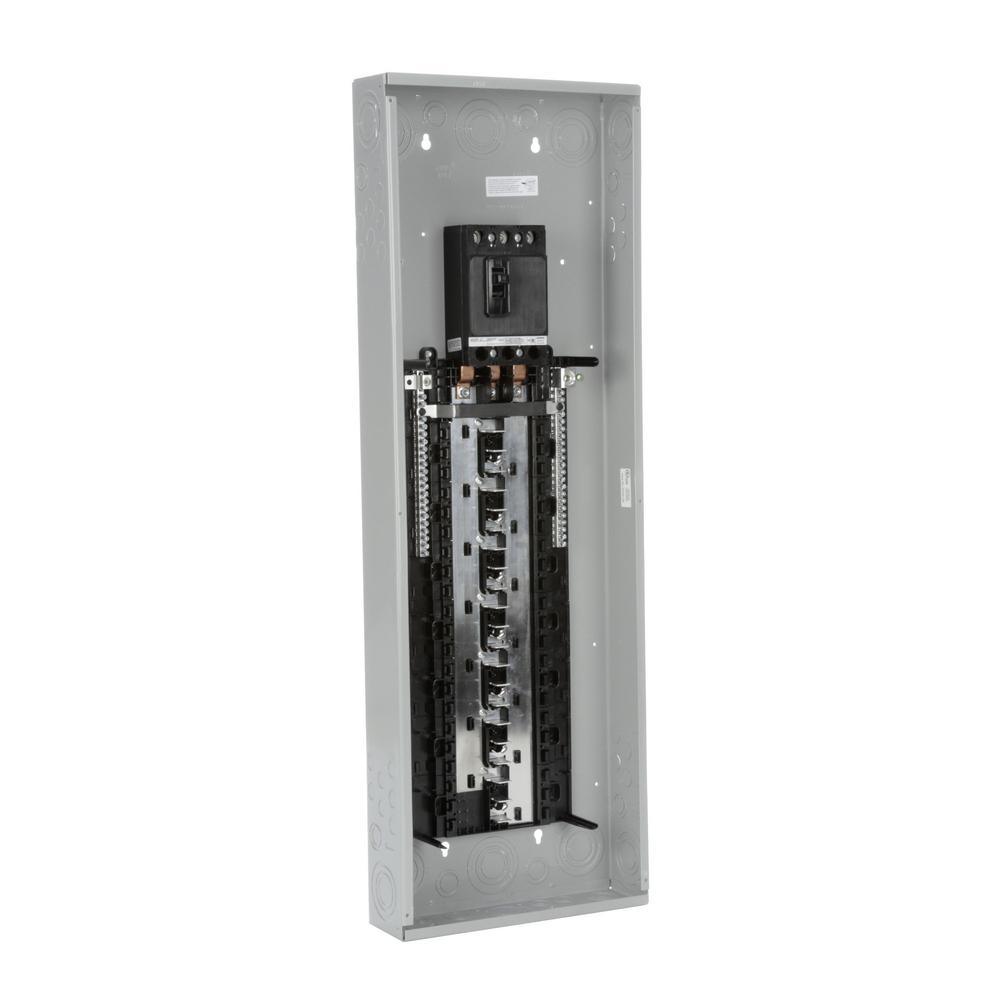

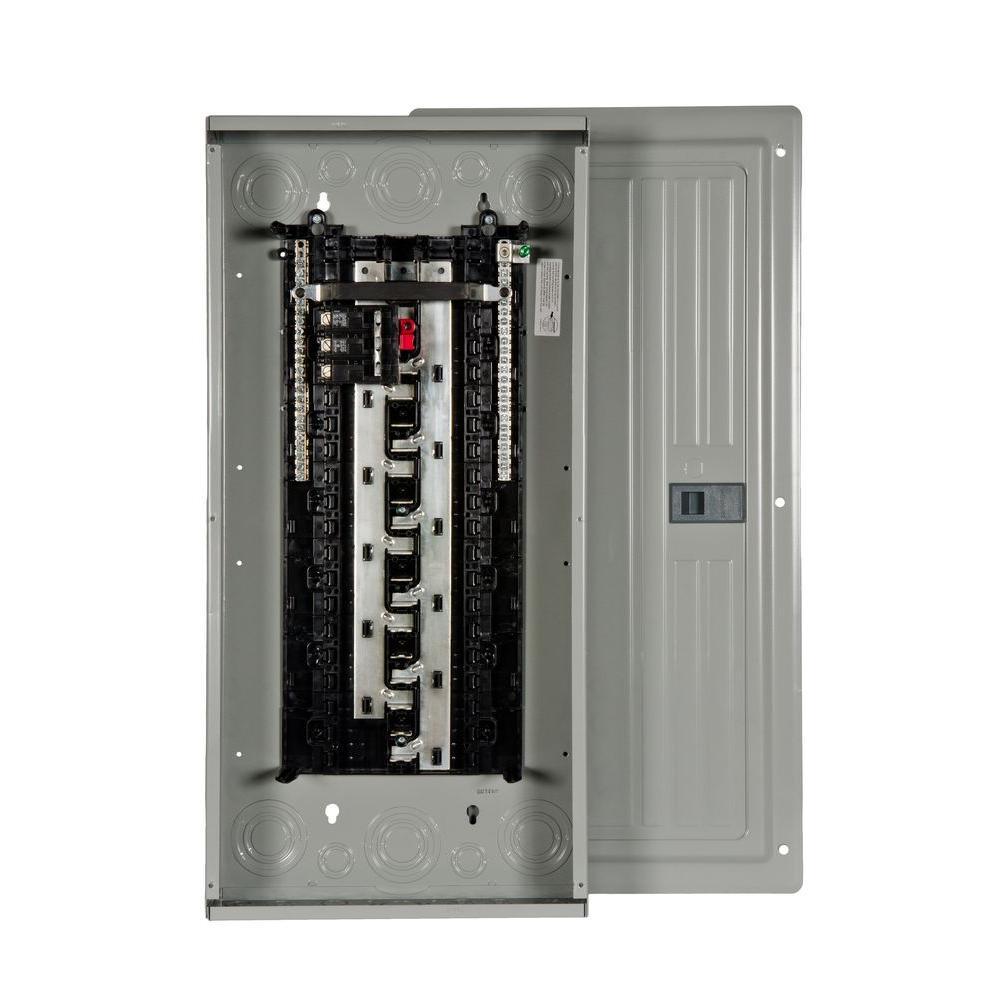

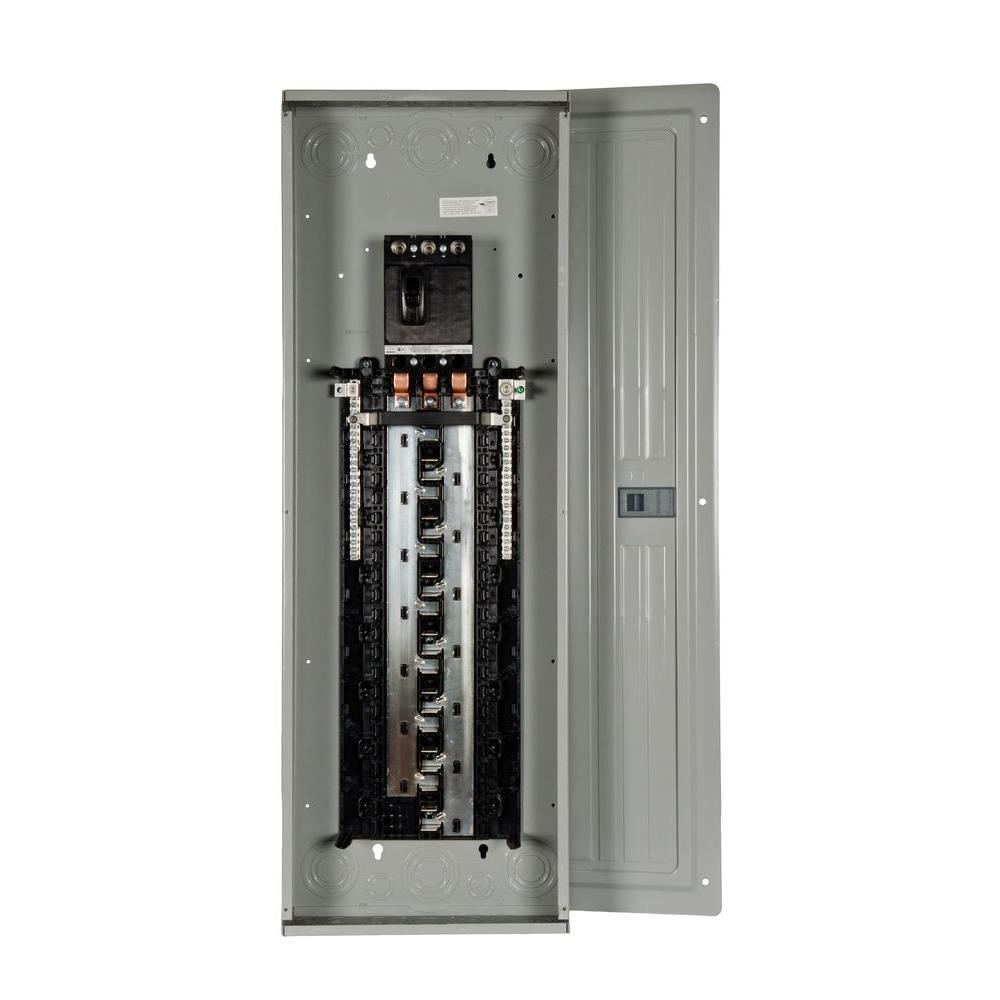

ES Series 225 Amp 42-Space 42-Circuit Main Breaker Indoor 3-Phase Load Center - Super Arbor

Siemens

ES Series 225 Amp 42-Space 42-Circuit Main Breaker Indoor 3-Phase Load Center

$404.50

In stock

SKU 205856748

A human specialist prices every line

Questions on spec, quantity, or freight? Call 1.877.490.7099 or write hello@superarbor.com.

Buying more than one thing? Send the list — however you have it

Freight and delivery are confirmed with you by a specialist — no surprise charges.

Details

The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
  • A 3-phase, 120/240 or 120/208-Volt, 225-Amp main breaker load center with 42-spaces/42-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • Dual side inboard neutral
  • Invertible for bottom feed application
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
  • Rigid, sturdy base pan provides ruggedness required for harsh applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist


Features
Item Weight 40
Voltage (volts) 120
Number of Circuits 42
Mounting Type Bolt On
Maximum Amperage (amps) 225
Load Center Mounting Type Flush,Surface
Load Center Type Main Breaker
Electrical Product Type Load Center
Product Weight (lb.) 40
Number of Spaces 42
Phase Type 3 Phase
Indoor/Outdoor Indoor
Returnable 180-Day
Load center depth (in.) 5
Load center width (in.) 15.875
Load center height (in.) 43.625
Certifications and Listings UL Listed
Manufacturer Warranty 10 Year
