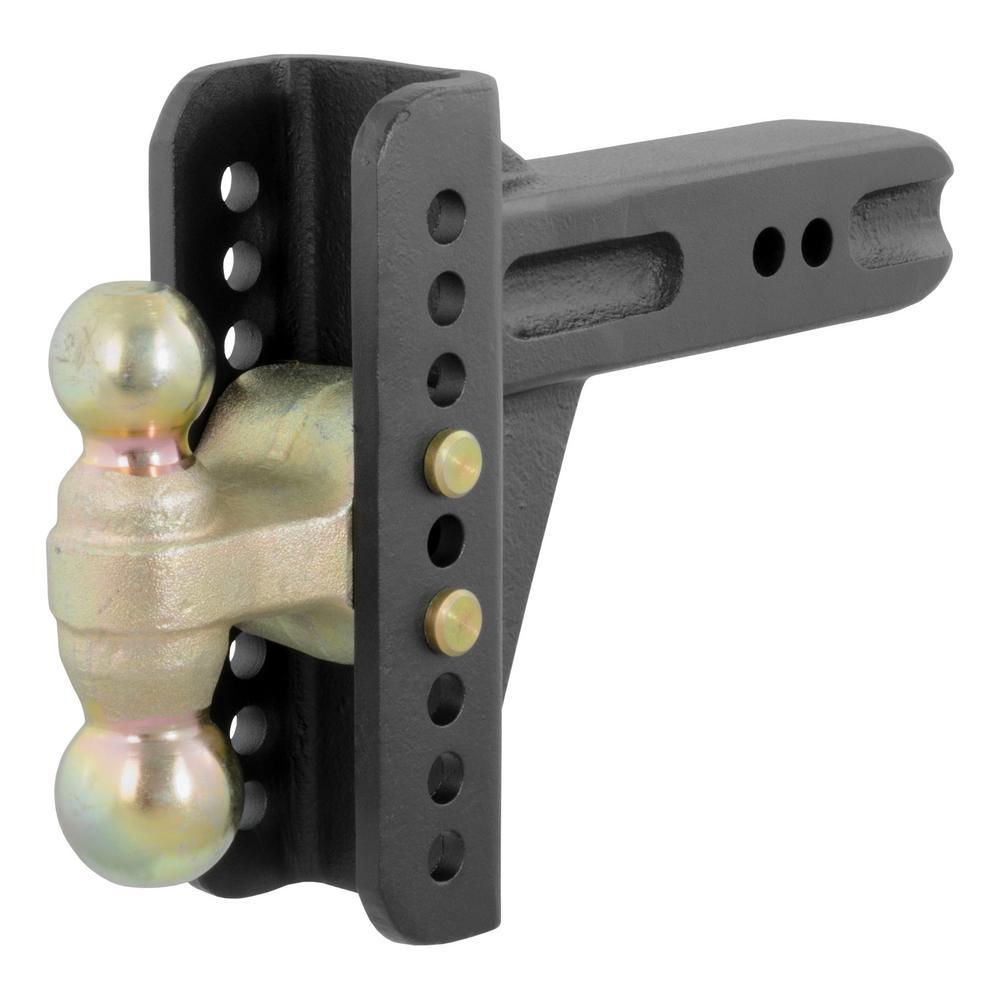

CURT Adjustable Channel 2-1/2 in. Shank, 20,000 lbs., 6 in. Drop Mount with Dual Ball

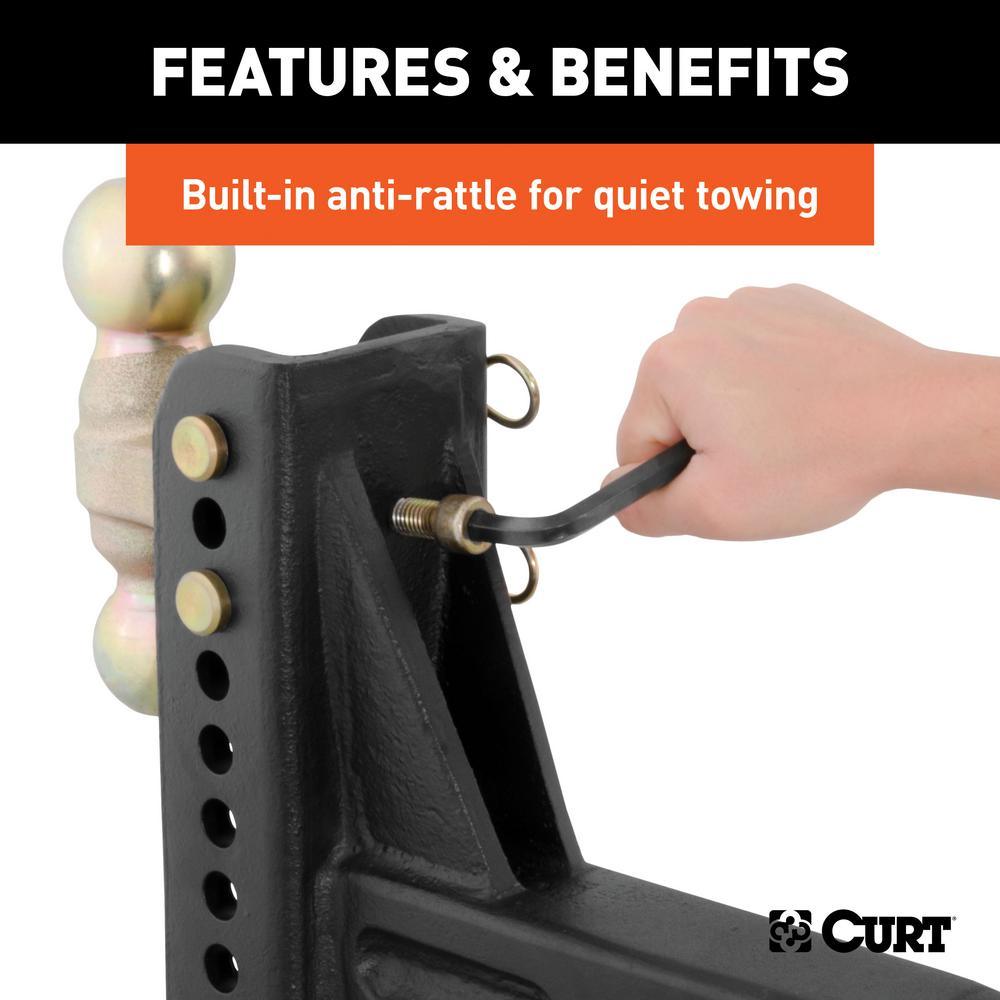

Precio habitual $247.10This CURT adjustable channel-style ball mount has a shank size of 2-1/2 in. x 2-1/2 in. and features 2 different trailer ball sizes to accommodate 2 different coupler sizes: 2 in. and 2-5/16 in. It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-1/4 in. rise or lowered to a maximum of 6 in. drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2 in. ball and 20,000 lbs. for the 2-5/16 in. ball.

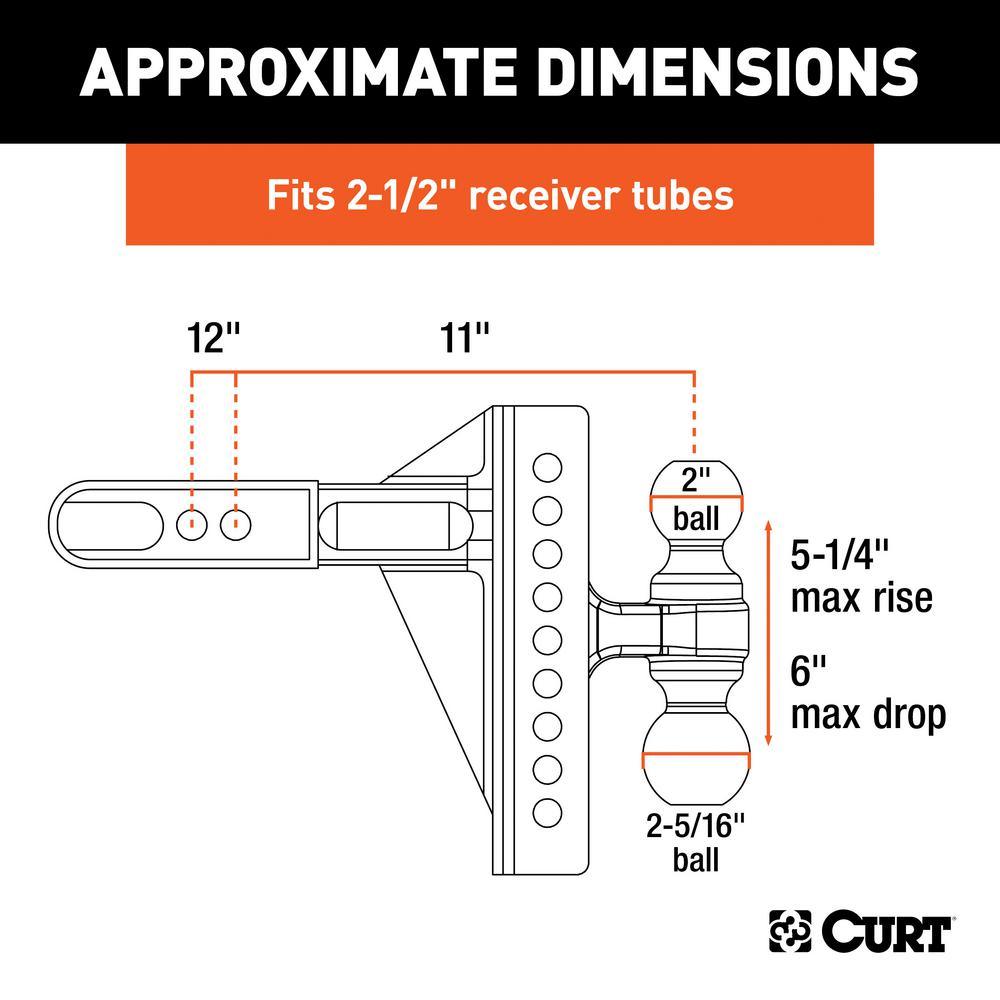

- Mounts on trailer hitches with a 2-1/2 in. x 2-1/2 in. receiver tube opening
- Adjustable channel mount allows for precise trailer leveling

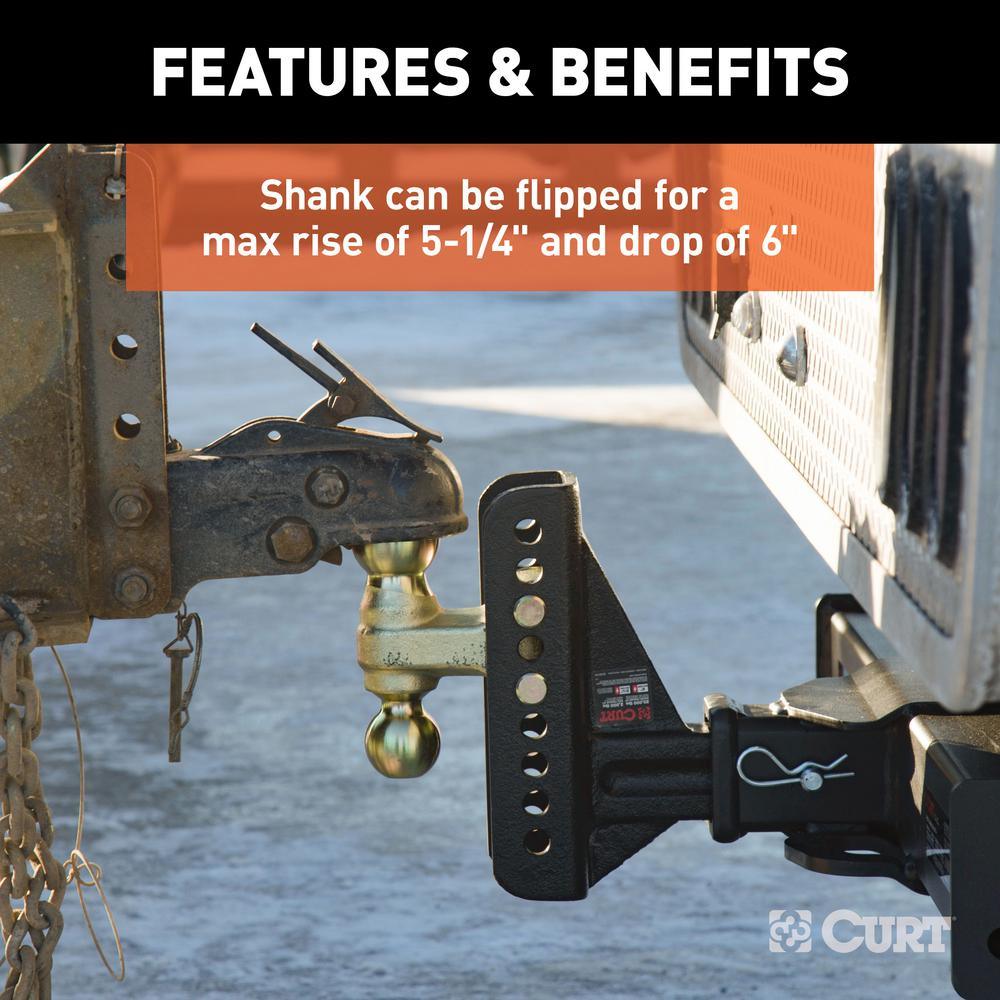

- Shank can be flipped for a maximum rise of 5-1/4 in. and drop of 6 in.

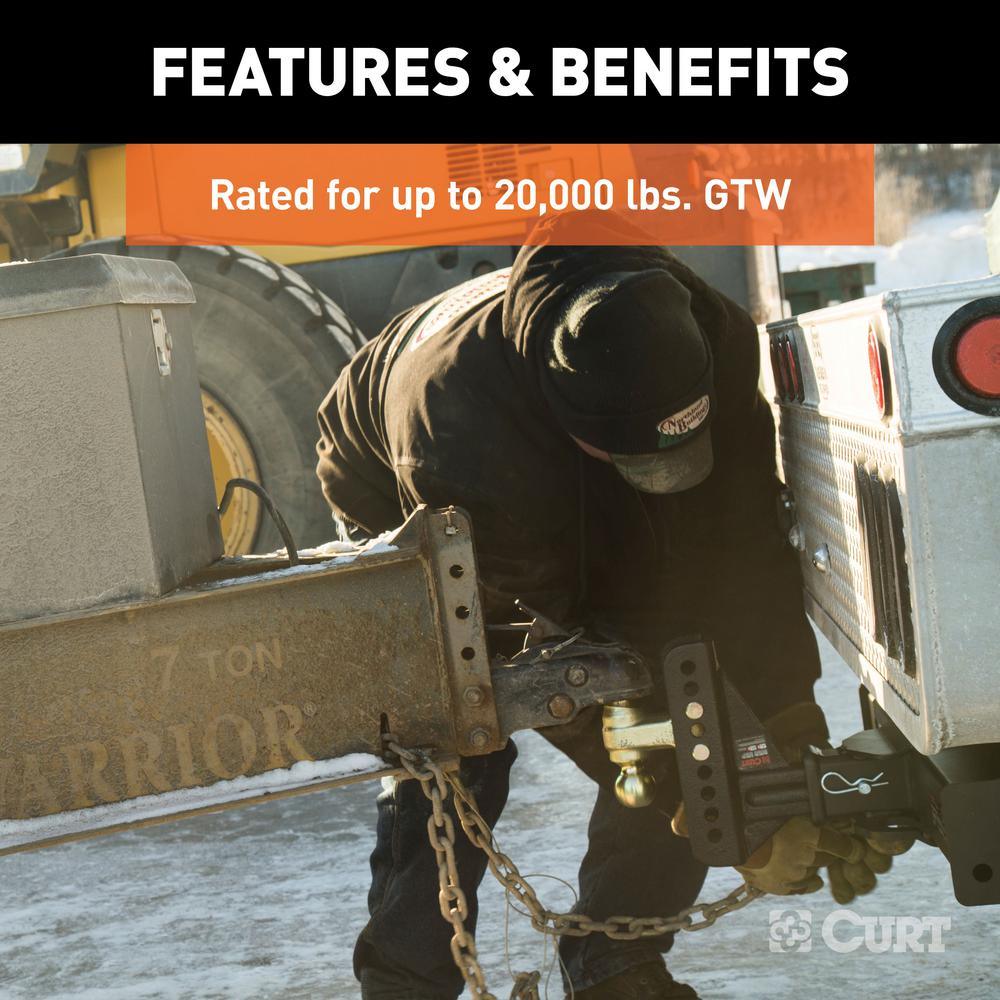

- 2 in. ball rated for 10,000 lbs. and 2-5/16 in. ball rated for 20,000 lbs.
-
Features
| Item Weight | 38 |
| Automotive Part Type | Trailer Hitch Ball Mount |
| Material | Steel |
| Finish | Carbide Black Powder Coat |
| Tongue load rating (lb.) | 0 |
| Hitch Class | IV |
| Length | 12 |
| Returnable | 180-Day |
| Features | Rust Resistant |
| Ball Quantity | 2 |
| Receiver Opening (in.) | 2-1/2 in |
| Rise | No Rise |
| Material2 | Steel |
| Product Weight (lb.) | 38.00 lb |
| Rise2 | 5-1/4 in |
| Product Length (in.) | 13.50 in |
| Product Height (in.) | 5.00 in |
| Product Depth (in.) | 13.50 in |
| Product Width (in.) | 11.50 in |
| Manufacturer Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
