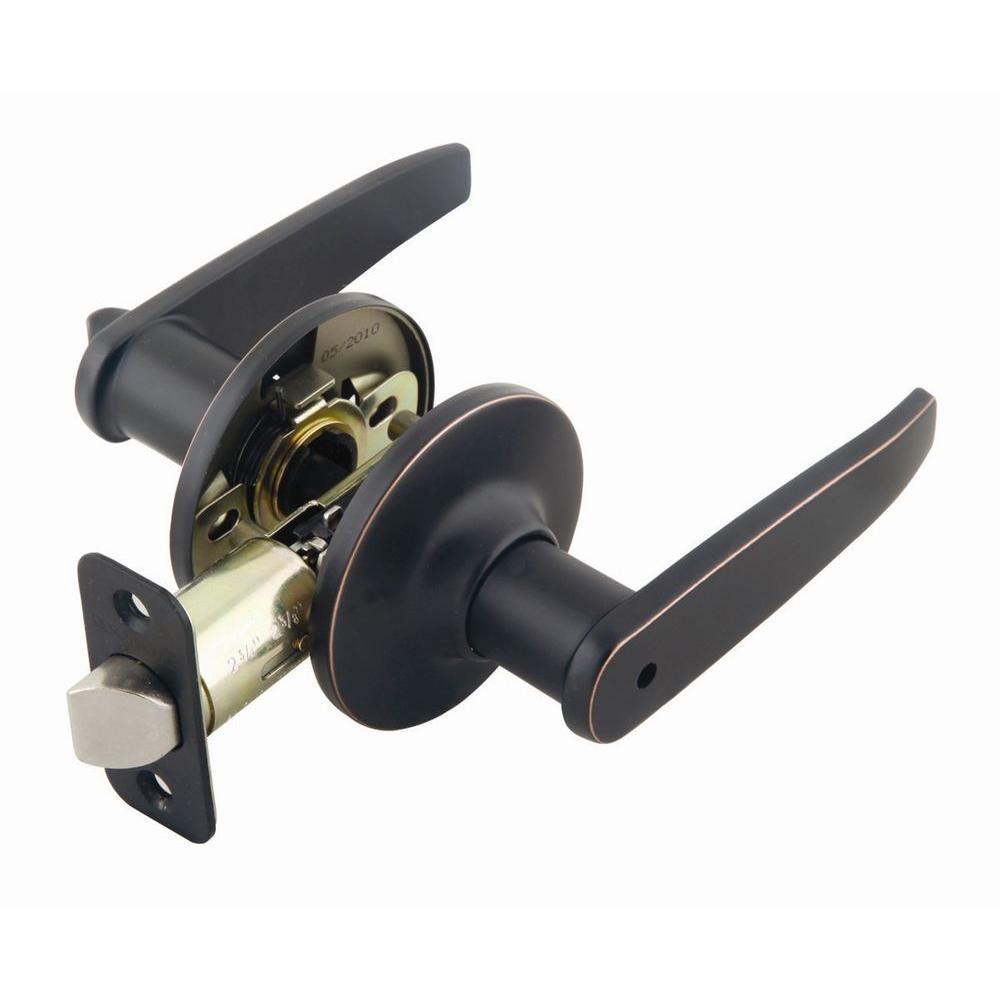

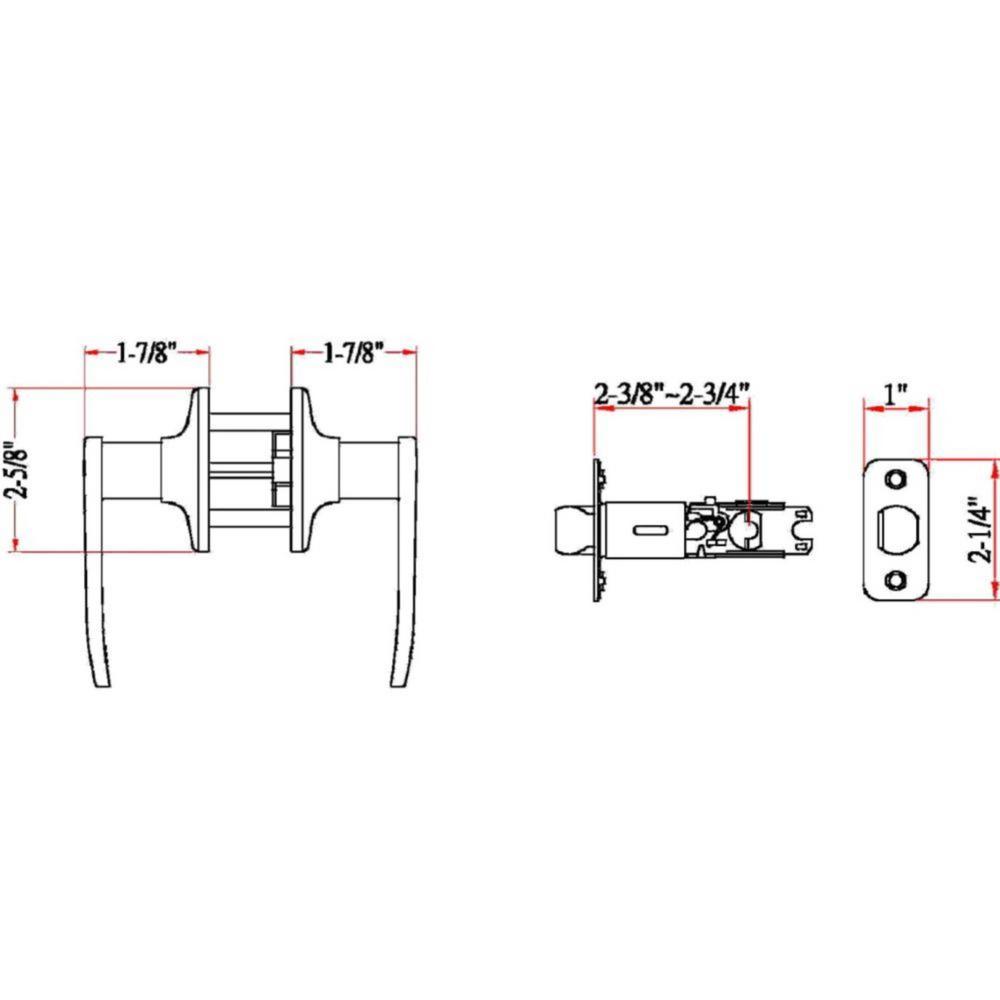

Streamlined, straight lever shape of the Delavan is perfect for an updated look. This privacy lever is designed for bedrooms and bathrooms, locking with a turn button on the inside and not requiring a key. 2-way latch that is adjustable from 2-3/8 in. up to a 2-3/4 in. backset. Full 1/2 in. throw, nickel plated.
- Fits doors 1-3/8 in. up to 1-3/4 in. thick
- Ideal for interior doors where security is required
- Reversible lever for right and left hand doors and features a turn button lock mechanism on inside
- Simple installation with basic tools, all mounting hardware included
- Grade 3 ANSI and BHMA certified
- UL fire rated for up to 3 hours
- 5 year warranty on finish and limited lifetime warranty on mechanics
Features
| Item Weight |
1.48 |
| Included |
Drilling Template,Hardware,Installation Instructions |
| Lock Type |
Unkeyed |
| Door Locks & Knobs Product Type |
Privacy Levers |
| Hardware Finish Family |
Bronze |
| Material |
Steel |
| Application Type |
Privacy |
| Commercial/Residential |
Residential |
| Strike |
Round corner |
| Product Weight (lb.) |
1.48 |
| Returnable |
180-Day |
| Door Handing |
Universal |
| Minimum door thickness (in.) |
1.375 |
| Lever material |
steel and zinc alloy |
| Security/ANSI Grade |
ANSI Grade 3 (Good) |
| Lever style |
Straight |
| Interior/Exterior |
Interior |
| Features |
Adjustable Backset,Easy Installation |
| Lock Type2 |
Unkeyed |
| Door Lock Style |
Modern |
| Finish |
oil rubbed bronze |
| Throw length (in.) |
.5 |
| Lever grip length (in.) |
4.02 |
| Projection (in.) |
1.875 |
| Strike height (in.) |
2.25 |
| Cross bore diameter (in.) |
2.09 |
| Lever housing width (in.) |
2.63 |
| Assembled Height (in.) |
2.63 in |
| Assembled Width (in.) |
6.69 in |
| Maximum door thickness (in.) |
1.75 |
| Strike width (in.) |
1 |
| Assembled Depth (in.) |
6.19 in |
| Lever housing height (in.) |
2.63 |
| Manufacturer Warranty |
5yrs on finish / limited lifetime on mechanics |
| Certifications and Listings |
No Certifications or Listings |
