Pergo Floor museum
One plank, opened up. Seven things in 12 mm.

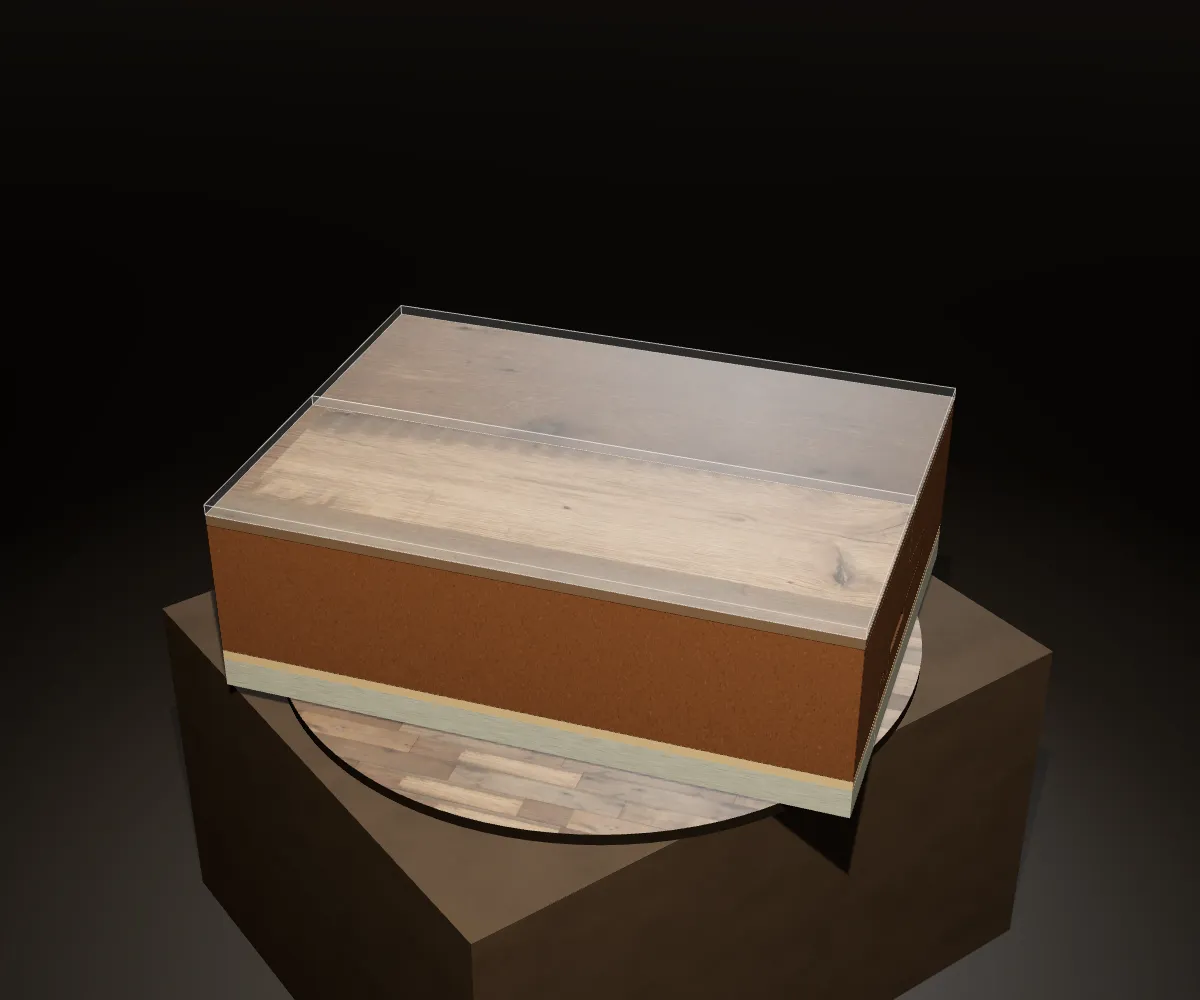

A cut sample of two Pergo laminate planks clicked together, magnified so every layer shows. Select a part to lift it out and read what it does — in Pergo's own words.
Drag to turn · select a part
Preparing the gallery…
Illustrative specimen. Modelled on Pergo Outlast+ laminate: 10 mm plank plus 2 mm attached underlayment (per the listing). Thickness is drawn about 3× life size and the paper-thin top and back layers thicker still, so they can be seen; the tongue-and-groove profile is a drawing that explains an angle-in, rotate-down click joint — Pergo does not publish its dimensions on the listing. The décor is the listing photo of the colour picked for Direction A. Sources are listed below; this is not installation instruction — follow Pergo's instructions for the floor you buy.
The floor lab sample room
Lay it, open it, live on it. Then price it.
A sample living room, 16 × 13 ft, with a doorway to the hall. Lay a real Pergo floor from the catalog, compare two side by side, open up the build-up, see what the documents say about spills and traffic — then turn your rooms into cases.
Sample room · Direction A
Outlast+ · Rutherford Autumn Oak
A
B
Laying the floor…
Direction A · from the catalog
Pick a floor.
Same floor, different light. A wood look reads warmer in low evening sun.
Build-up · illustrative
Lift the layers.
03 The click joint
Pergo's instructions: insert the tongue at a slight angle until the edges meet, then rotate down until the joint locks. Stagger end joints at least 12 in.
04 Subfloor
Illustration, not a test
Live on it.
Every animation here is an illustration of what Pergo's documents and the listing say — not a simulation, a test, or a warranty statement.
Your rooms · real listings
Measure, then count cases.
10% and 15% are Pergo's own figures for straight and diagonal installs (Installation Essentials Guide). Every listing used here also says to buy at least 10% over.
Floor IQ · three quick checks
Floor planner material list
Your floor, priced.
| Product | Unit | Qty | Snapshot price | Extended |
|---|
Snapshot total
$0.00
Cases round up to whole cases from each listing's own sq ft per case. Not included: transitions and wall trim, foam backer rod, 100% silicone sealant, vapor barrier and tools. Prices are a dated snapshot — the listing always has the current price and availability.
Sources
Where every fact comes from.
Product facts are quoted from Pergo's installation documents and pages, or from the Super Arbor listing's own text. Read the full documents — and the warranty — for the floor you buy.
From the catalog
The listings behind this exhibit.
Every floor above is a live Super Arbor listing, checked on . Prices shown are a dated snapshot.
All colours used in the design studio
| Line | Colour | Plank | Coverage (source) | Snapshot price |
|---|
